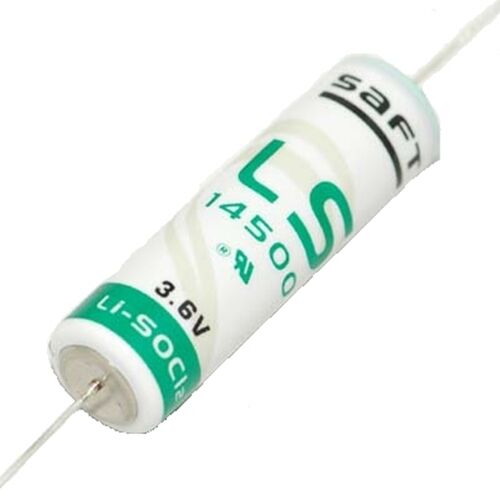

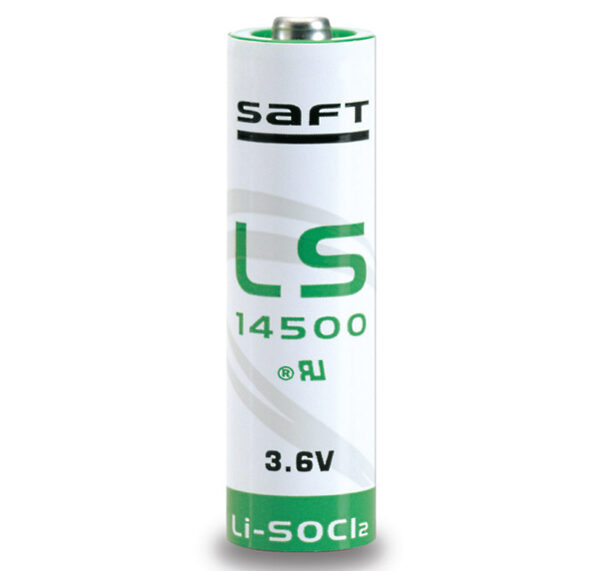

SAFT LS14500 3.6V AA Lithium Battery

Description

The SAFT LS14500 is a premium 3.6V Lithium-Thionyl Chloride (Li-SOCl₂) AA battery engineered for reliable long-term performance in demanding industrial and electronic applications. Designed for low-drain, long-duration applications such as metering, memory backup, security systems, sensors, and industrial controls, the LS14500 offers ultra-low self-discharge, high energy density, and dependable operation across a wide temperature range.

Compatible With / Replaces

The LS14500 battery is a compatible replacement for the many 3.6 Volt Li-SOCl₂  AA batteries including:

• ER14500
• ER14505
• TL-2100
• TL-5903
• XL-060F

Key Features

• Ultra-low self discharge (<1% per year)
• Wide operating temperature range
• Long service life (10 + years)
• High energy density
• Industrial-grade reliability
• Designed for low-drain applications

Applications

• Utility & smart meters
• Sensors & wireless transmitters
• PLC – programmable logic controllers
• Security & alarm systems
• Memory/RTC backup power
• Medical & diagnostic equipment
• Industrial controls & instrumentation
• GPS tracking devices & beacons

Specifications

• Voltage: 3.6 Volts
• Capacity: 2,600 mAh
• Chemistry: Li-SOCl₂
• Size: AA
• Diameter 14.62mm
• Height 50.28mm
• Non-rechargeable

SAFT LS14500 data sheet (PDF)
