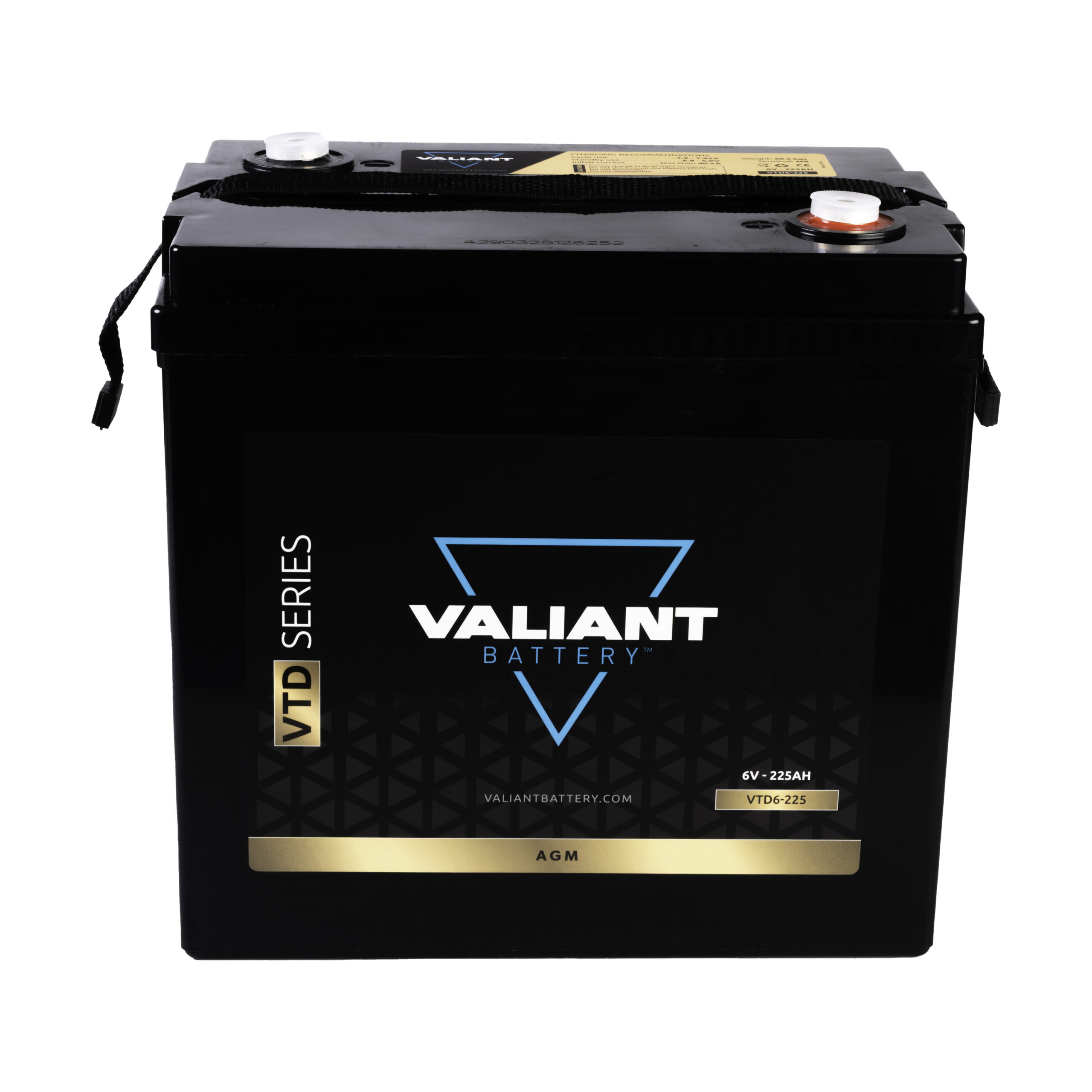

6V 225Ah AGM Deep Cycle Battery – GC2

Description

The VTD6-225 is a 6V 225Ah GC2 AGM deep cycle battery designed to deliver reliable, maintenance-free power for demanding applications. Built for frequent charge and discharge cycles, it provides up to 1,200 cycles at 50% depth of discharge and offers a long service life of up to 15 years in standby use. Its sealed AGM design makes it ideal for indoor installations and hard-to-access locations where maintenance is difficult.

Compatible With / Replaces

The VTD6-225 replaces common GC2 AGM batteries including:

• 6V-AGM
• 8AGC2
• DC224-6
• EVGC6A-A
• GC2-AGM
• GC2-HD-AGM
• T105-AGM / T-105 AGM / T105-AES
• USAGM2000

Key Features

• 225Ah Deep Cycle Capacity – Reliable power for high-demand cycling and standby applications.
• High Cycle Life – Up to 1,200 cycles at 50% depth of discharge.
• Maintenance-Free AGM Design – Sealed, spill-proof construction with no watering required.
• Long Service Life – Up to 15 years in float/standby applications.
• Fast Recharge – Efficient charge acceptance for reduced downtime.
• Durable Construction – Thick plates and reinforced AGM separators for demanding use.

Common Applications

• Golf carts
• Floor scrubbers and cleaning equipment
• Solar and off-grid battery banks
• Scissor lifts
• Marine and RV house power systems
• Material handling equipment
• Backup and standby power systems

Specifications

• Voltage: 6 Volts
• Capacity: 225 Ah
• Chemistry: AGM (Absorbent Glass Mat)
• BCI Group Size: GC2
• Length: 10.2″ / 260 mm
• Width: 7.1″ / 180 mm
• Height: 9.8″ / 249 mm
• Weight: 68 lbs / 30.5 kg
• Terminal: M8 insert terminals
• Data Sheet: VTD6-225 specifications (PDF)

AGM vs Flooded: AGM batteries are maintenance-free, spill-proof, and ideal for indoor or low-maintenance applications, while flooded batteries offer a lower upfront cost but require regular watering and ventilation.

The VTD6-225 AGM battery delivers reliable, maintenance-free deep cycle performance for golf carts, floor machines, solar systems, and backup power applications. Multiple batteries can be connected in series to create 12V, 24V, 36V, or 48V battery banks.

Looking for a more budget-friendly option? See our 6V 225Ah GC2 Flooded Deep Cycle Battery for a cost-effective alternative.
