Description

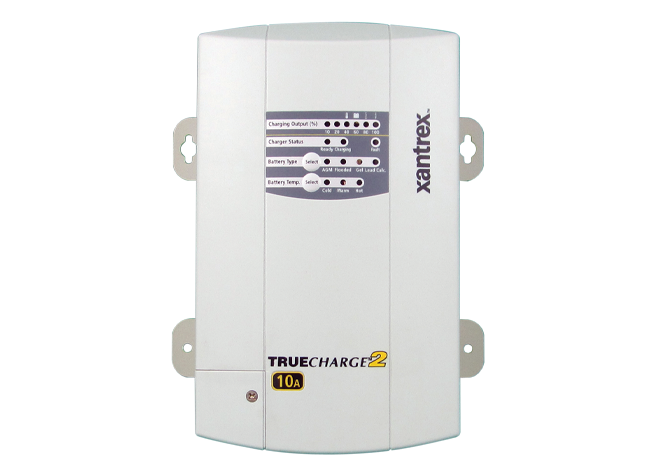

Compact, efficient smart charger for marine, RV, and commercial battery systems. The Xantrex 804-1210 TrueCharge2 Battery Charger delivers reliable multistage charging for 12V battery banks while helping maximize battery performance and lifespan.

Designed for marine, RV, and commercial applications, the TrueCharge2 10A charger features microprocessor-controlled charging, automatic temperature compensation, and low AC power consumption in a compact easy-to-install design.

Common Applications

Marine and fishing boats
RV and camper battery systems
Commercial and work trucks
Backup and auxiliary battery systems

Key Features

12 Volt / 10 Amp automatic battery charger
Advanced 3-stage charging:
- Bulk
- Absorption
- Float
Microprocessor-controlled charging helps extend battery life
Automatic temperature compensation adjusts charging based on battery temperature
Efficient design minimizes unnecessary AC power consumption
Compatible with:
- Flooded (wet) batteries
- AGM batteries
- Gel batteries
Supports battery banks from 20Ah to 100Ah
Compact design with multiple mounting options

Specifications

Length: 8.8″ / 224 mm
Width: 5.4″ / 138 mm
Height: 2.7″ / 70 mm
Weight: 3.3 lbs / 1.5 kg

Optional Accessory

The Xantrex Battery Temperature Sensor is a recommended accessory for the TrueCharge2 charger to help improve charging accuracy and battery protection.
