Description

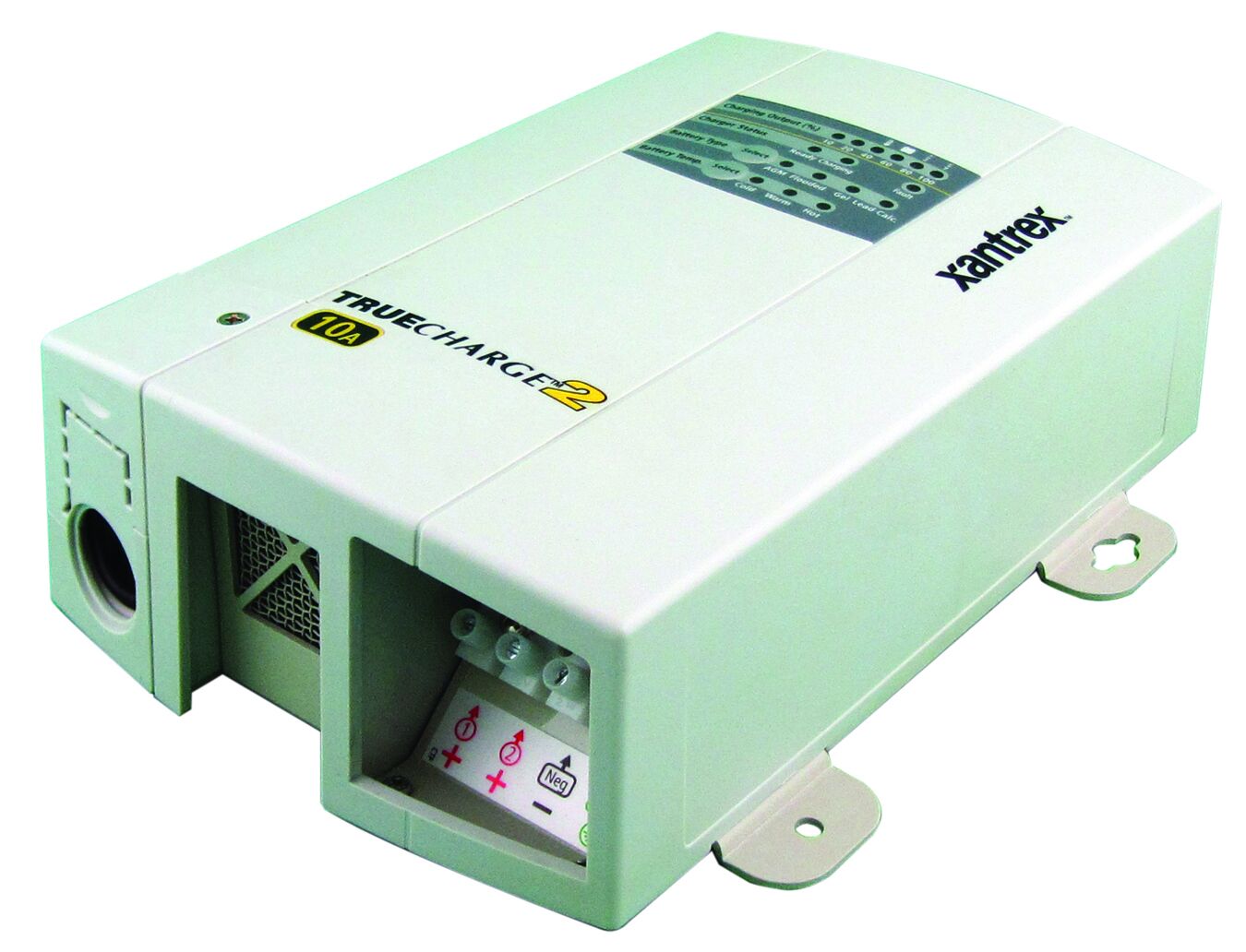

Xantrex TRUEcharge2 10 Amp battery charger
12 Volt 10 Amp battery charger
Can charge flooded, AGM, or Gel 12 Volt batteries with capacities between 20 Ah and 100 Ah
Designed for quick and accurate charging of deep cycle batteries
3 Stage charging cycle
- Bulk – charges to 70-80% of batteries capacity at a fast rate
- Absorption – charges remaining 20-30% of capacity at a slow rate
- Float -holds battery voltage constant to protect and maintain
Requires less incoming AC power to operate at its peak efficiency, freeing up more usable AC power for onboard electronics
Compact and lightweight – under 4 lbs
Universal auto ranging input voltage (90 Vac to 265 Vac, 47 to 63 Hz), which can be used in most parts of the world
Temperature compensated charging
Tested to conform to ingress protection rating IP32 and meets UL1564, UL1236 including marine supplement and ABYC standards
Xantrex part 804-1210
TC2_10A_Battery_Charger user guide
The Xantrex Battery Temperature Sensor is a great accessory for your TRUEcharge2 charger to help protect your batteries
