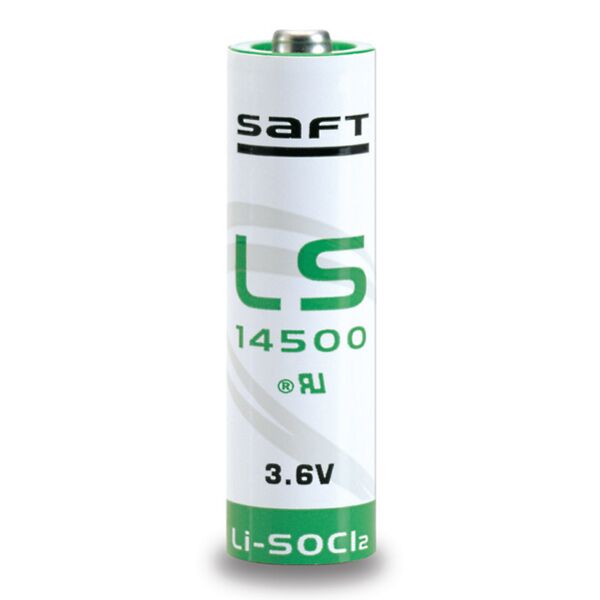

SAFT LS14500 3.6V AA Lithium Battery

Description

The SAFT LS14500 is a non-rechargeable 3.6V AA-size lithium-thionyl chloride (Li-SOCl₂) battery with low self-discharge.  It’s engineered for reliable long-term performance in demanding industrial and electronic applications.

Cross-reference and Compatibility

The LS14500 may be a suitable replacement for many 3.6 Volt Li-SOCl₂  AA batteries including:

• ER14500
• ER14505
• TL-2100
• TL-5903
• XL-060F

Important: Verify the battery dimensions, terminal configuration, continuous-current requirements, and pulse-current requirements before substituting batteries. Equivalent size and voltage do not guarantee compatibility with every device.

Key Features

• Low self-discharge helps preserve capacity during storage
• Stable voltage through most of the battery’s operating life
• Operating temperature range of −60 °C to +85 °C
• Maximum recommended continuous current: 50 mA
• Supports brief current pulses up to 250 mA under the conditions specified in the data sheet
• Stainless steel case with a hermetic glass-to-metal seal

Typical Applications

• Utility & smart meters
• Sensors & wireless transmitters
• PLC – programmable logic controllers
• Security & alarm systems
• Memory/RTC backup power
• Medical & diagnostic equipment
• Industrial controls & instrumentation
• GPS tracking devices & beacons

Specifications

• Manufacturer: SAFT
• Model: LS14500
• Chemistry: Lithium-thionyl chloride (Li-SOCl₂)
• Cell type: Primary/non-rechargeable
• Nominal voltage: 3.6V
• Nominal capacity: 2.6 Ah (2,600 mAh)
• Size: AA
• Maximum diameter: 14.62 mm
• Maximum height: 50.28 mm
• Typical weight: 17 g
• Terminals: Standard AA contacts (raised positive, flat negative)
• Data Sheet: LS 14500 Product datasheet (PDF)

Important: This is a non-rechargeable lithium battery. Do not attempt to recharge.
