24DC to 12DC 20 Amp Converter
Victron Energy

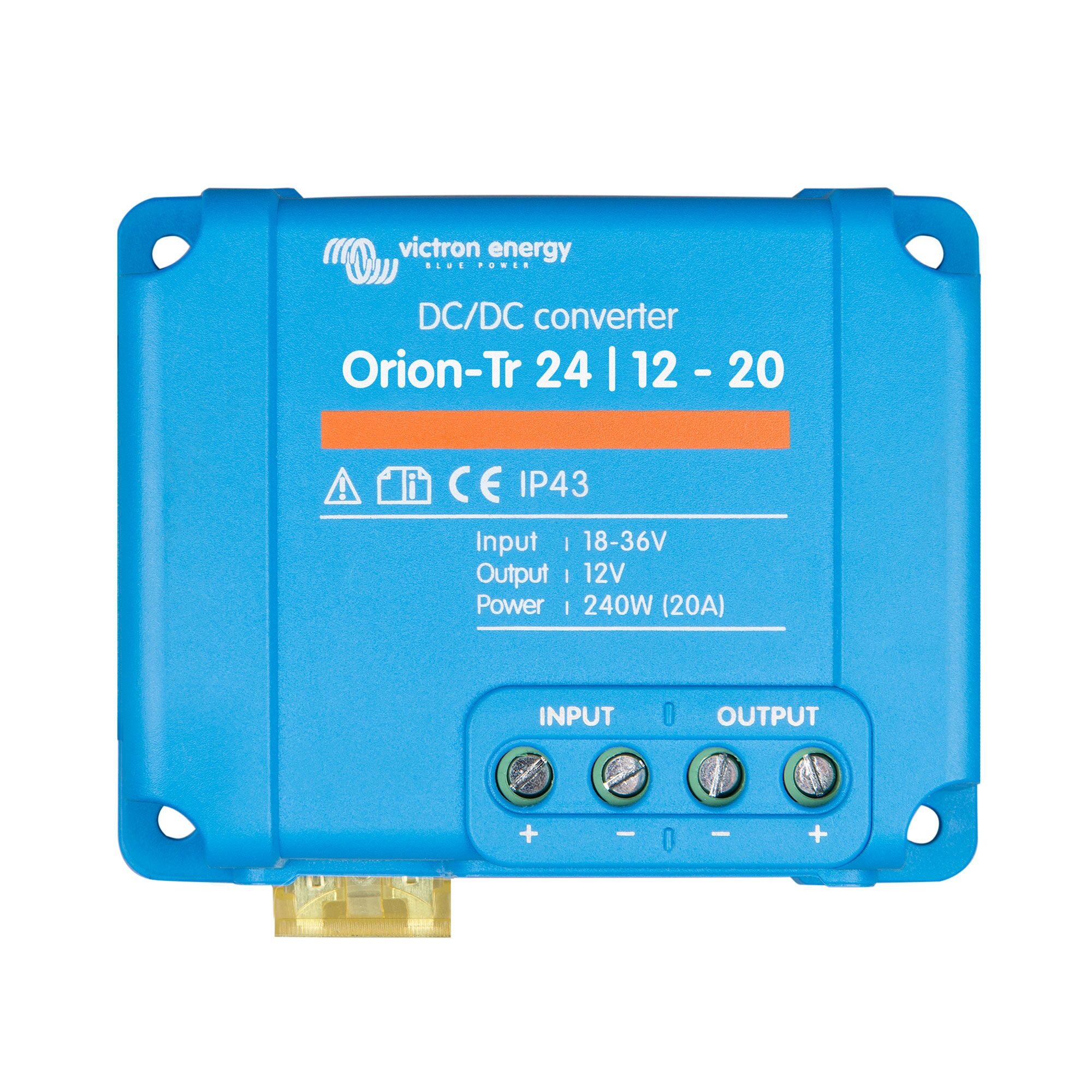

Orion TR DC to DC converter. 24/12V 20 Amp. Full load efficiency is greater than 95%!
Easy to install – no special tools required.
$70.00
Description
24DC to 12DC 20 Amp Converter
240 Watt
High Efficiency DC to DC Converter
Non-isolated
240W
Input voltage range: 18 to 35 Volts
Output voltage range: 12.5 Volts
Continuous output current – 20 Amps
Maximum output current – 25 Amps
Full load efficiency is greater than 95%
Easy installation
IP43 protection when the screw terminals are downwards
Dimensions:
- Height: 2.9″ / 73 mm
- Width: 3.7″ / 94 mm
- Depth: 1.8″ / 45 mm
- Weight: .6 lbs / .3 kg
Orion DCtoDC converter specifications
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 8 × 3 in |
| Brand | Victron Energy |
| Voltage | 24 Volts |
DCC1212-40
DC to DC converter
