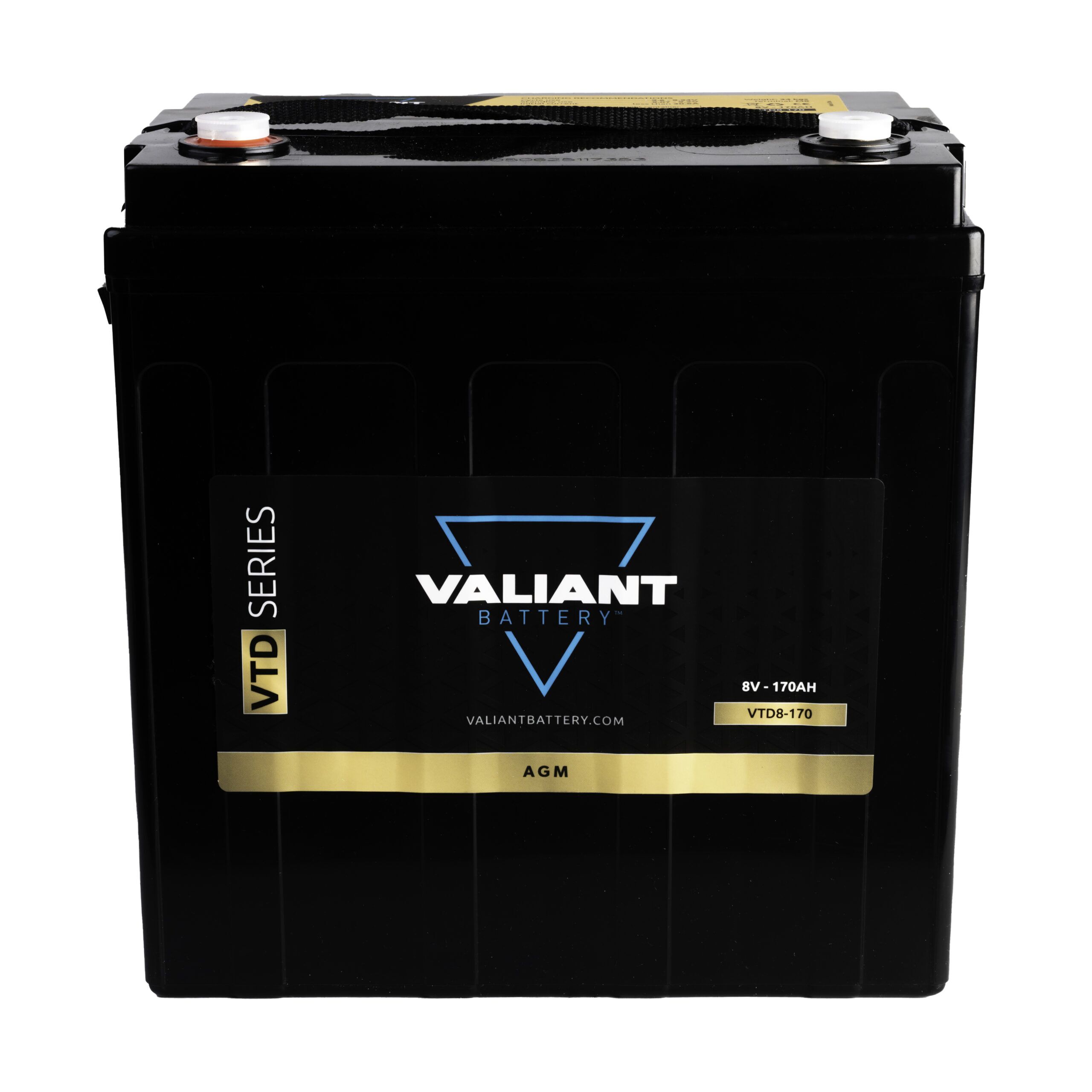

8V 170Ah AGM Deep Cycle Battery

Description

Premium maintenance-free power for golf carts and deep cycle applications. The 8V 170Ah AGM GC8 deep cycle battery delivers reliable, high-performance power with no watering required. Designed for repeated charge and discharge cycles, this sealed AGM battery is ideal for golf carts, floor cleaning equipment, solar systems, and other demanding applications.

Compatible With / Replaces

The VTD8-170 AGM battery replaces common GC8 AGM batteries including:

• CR-165 AGM
• GC8-170 AGM
• MP-GC8 AGM
• T875 AGM / T-875 AGM
• T875-AES
• US8VAGM

Key Features

• 170Ah Deep Cycle Capacity – Reliable power for demanding cycling applications.
• High Cycle Life – Up to 1,200 cycles at 50% depth of discharge.
• Maintenance-Free AGM Design – No watering or regular maintenance required.
• Spill-Proof & Leak-Proof – Safe for indoor and enclosed applications.
• Long Design Life – Up to 15 years in standby applications.
• Durable Construction – Built for repeated deep cycle use.

Applications

• Golf carts
• Floor scrubbers and industrial equipment
• Solar and off-grid battery systems
• Marine and RV house power

Specifications

• Voltage: 8 Volts
• Capacity: 170 Ah @ 20 hr rate
• Chemistry: AGM (Absorbent Glass Mat)
• BCI Group Size: GC8
• Length: 10.24″ / 260 mm
• Width: 7.17″ / 182 mm
• Height: 10.47″ / 266 mm
• Total Height: 10.67″ / 271 mm
• Weight: 75 lbs / 34 kg
• Terminal: M8 insert terminals

The VTD8-170 AGM battery can be connected in series to create 24V or 48V battery systems for golf carts and industrial equipment.

AGM vs Flooded: AGM batteries are maintenance-free, spill-proof, and ideal for indoor or low-maintenance applications, while flooded batteries offer a lower upfront cost but require periodic watering and ventilation.

Looking for a more budget-friendly option? See our 8V 190Ah flooded deep cycle battery.
