6 Volt GC2 Battery Box

Description

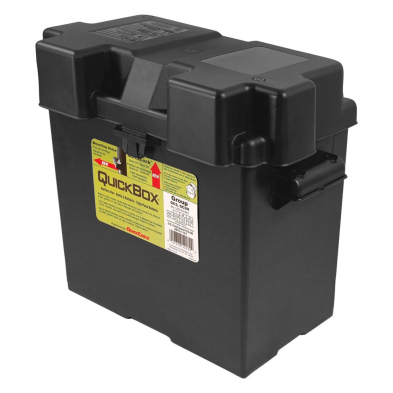

The Quick Cable 120174 6 Volt GC2 Battery Box provides rugged protection for one standard Group GC2 6V battery. Its heavy-wall polyethylene construction is flame retardant, resistant to acid, gasoline, oil and solvents, and designed to withstand both high and low temperatures.

Ideal for golf carts, floor machines, marine, RV and other deep cycle battery installations requiring a durable protective enclosure.

Key Features

• Single-Battery Capacity – Designed to hold one 6V battery.
• Heavy-Wall Polyethylene Construction – Rugged and durable for demanding applications.
• Flame Retardant – Provides added protection around the battery installation.
• Chemical Resistant – Impervious to acid, gasoline, oil and solvents.
• Wide Temperature Range – Heat stable and cold-impact resistant from -30°F to 200°F (-34°C to 93°C).

Included Components

• Battery box bottom
• Divider
• Lid
• Retaining strap

Dimensions

• Interior: 10.75″ L × 7.25″ W × 12.25″ H (273 × 184 × 311 mm)
• Exterior: 13.50″ L × 9.25″ W × 13″ H (343 × 235 × 330 mm)
• Weight: 1.5 lb (0.7 kg)
• Specifications: Quick Cable 120174 specifications (PDF)

Frequently Asked Questions

How many batteries does this box hold?

The Quick Cable 120174 is designed to hold one 6V battery.

What battery size does this box accommodate?

The Quick Cable 120174 is designed to hold one standard 6V Group GC2 battery. Because dimensions can vary slightly between manufacturers, compare your battery with the box’s interior dimensions of 10.75″ L × 7.25″ W × 12.25″ H (273 × 184 × 311 mm) before ordering.
