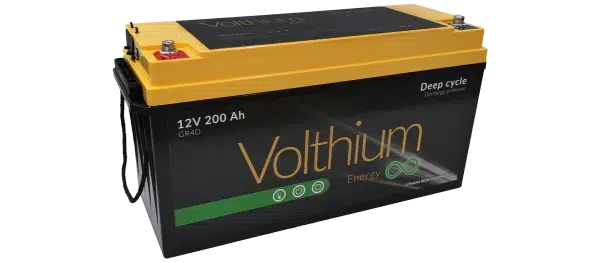

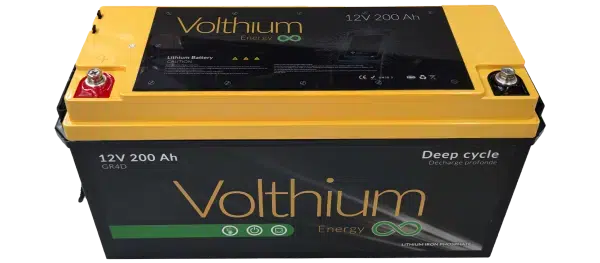

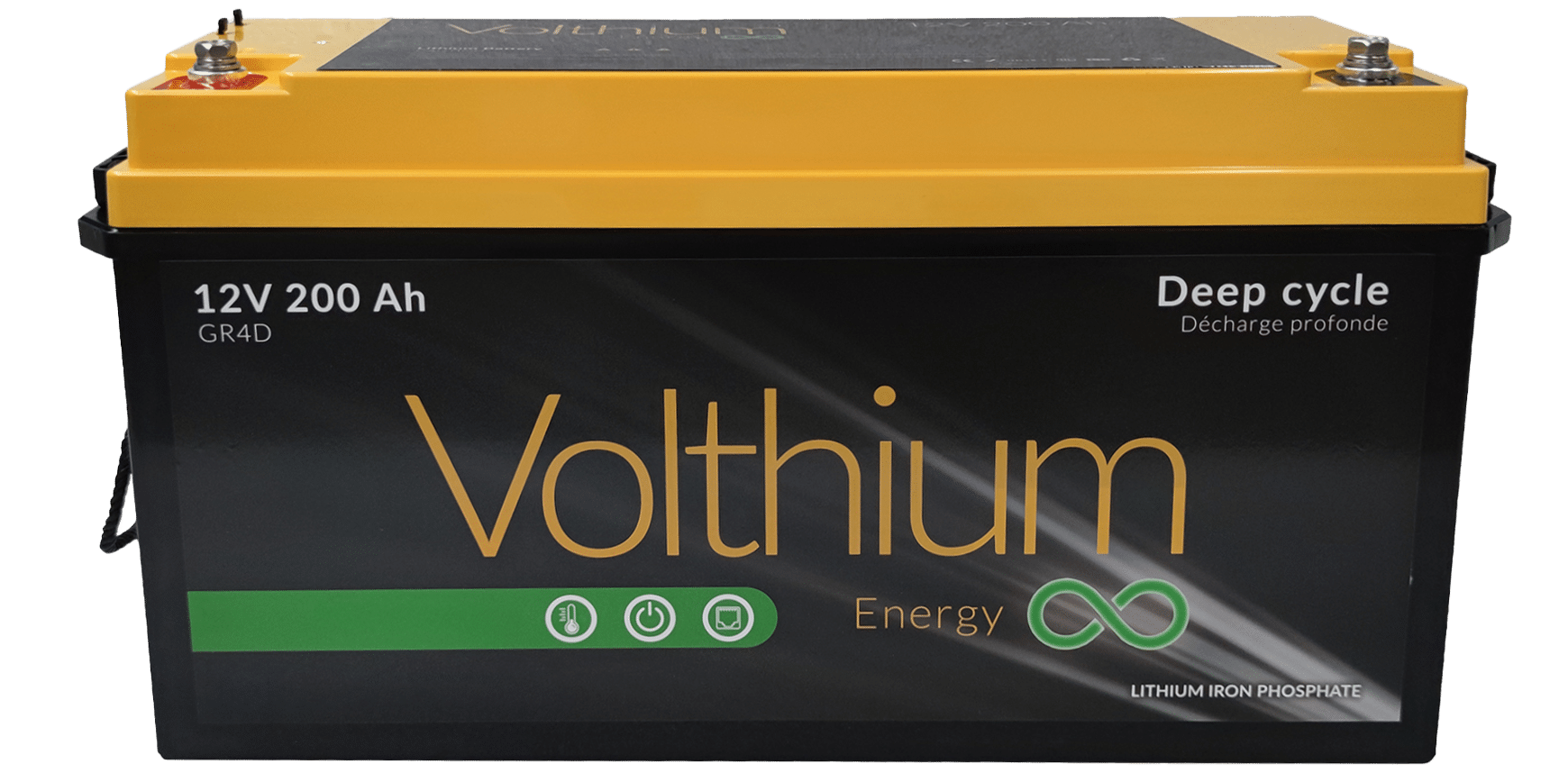

12V 200Ah 4D Lithium Deep Cycle Battery

Description

The Volthium 12V 200Ah PRO Series lithium battery is an advanced Group 4D LiFePO4 battery designed for RVs, marine vessels, trucking, off-grid systems, and commercial applications requiring both dependable deep cycle power and engine-starting capability.

Featuring patented SafeCharge™ technology, up to 1100 CCA, built-in Bluetooth monitoring, and an integrated heating system, this battery delivers reliable year-round performance. When paired with the Volthium SafeCharge current limiter, it can also simplify alternator-charging installations by eliminating the need for a conventional DC-to-DC charger in many compatible applications.

Compatible With / Replaces

The Volthium 12V 200Ah PRO Series battery is a compatible replacement for Group 4D lithium batteries, including:

• EWLI-12V200
• RB200
• Group 4D lithium batteries

Always compare the battery’s dimensions, terminal configuration, charging requirements, and electrical specifications before installation.

Key Features

• 12.8V 200Ah LiFePO4 battery with 2560Wh of nominal energy
• More than 6,000 cycles under recommended operating conditions
• SafeCharge™ compatible for simplified alternator charging in compatible applications
• Up to 1100 Cold Cranking Amps for engine-starting applications
• Combines deep cycle and engine-starting capability in one battery
• Built-in Bluetooth monitoring with mobile app support
• Integrated heating system for improved temperature performance
• LED charge-status indicator and built-in on/off switch
• CAN and RS485 communication ports with dual M12 communication connectors
• Repairable construction with serviceable access to the internal BMS
• IP67-rated water- and dust-resistant construction
• Vibration-resistant design for mobile and commercial applications
• Weighs only 50 lbs / 22.7 kg
• 10-year limited warranty

Applications

• RVs and motorhomes
• Marine and fishing boats
• Commercial trucks and service vehicles
• Off-grid solar systems
• Cottages and seasonal properties
• Industrial and commercial equipment
• Applications requiring combined starting and deep cycle performance

Specifications

• Nominal Voltage: 12.8V
• Capacity: 200Ah
• Nominal Energy: 2560Wh
• Chemistry: LiFePO4 (Lithium Iron Phosphate)
• BCI Group Size: Group 4D
• Cold Cranking Amps: Up to 1100 CCA
• Bluetooth: Yes
• Communication: CAN and RS485
• Communication Connectors: Dual M12
• Ingress Protection: IP67
• Terminal Type: M8
• Length: 19″ / 482 mm
• Width: 9.66″ / 245 mm
• Height: 6.7″ / 170 mm
• Weight: 50 lbs / 22.7 kg
• Warranty: 10-year limited warranty
• Certifications: ABYC-certified battery assembly; cells certified to UL1642, UL1973, IEC62619, IEC62660, and CSA UL9540A standards

Data Sheet: Volthium 12V 200Ah PRO Series specifications (PDF)

What Is SafeCharge™ Technology?

Volthium’s patented SafeCharge™ technology allows the battery to work with many existing lead-acid alternator-charging systems when paired with the Volthium SafeCharge current limiter.

The SafeCharge system regulates the current flowing from the alternator to the battery, helping protect the alternator from excessive demand. In many compatible applications, this eliminates the need for a conventional DC-to-DC charger and allows the battery to be installed without extensive changes to the existing electrical system.

Using the Volthium mobile app, installers can configure charging thresholds and current limits directly from a smartphone. The system then regulates charging automatically to help protect both the alternator and battery while maintaining reliable charging performance.

SafeCharge™ can also retain factory boost and combine functions commonly found in RV and marine electrical systems. This makes the battery particularly well suited to installations requiring both engine-starting and deep cycle performance from a single battery bank.

Deep Cycle and Starting Performance

Unlike a conventional deep cycle lithium battery, the Volthium PRO Series battery can supply up to 1100 CCA for compatible engine-starting applications while also providing 200Ah of deep cycle capacity.

This dual-purpose design makes it suitable for RVs, boats, commercial vehicles, and other installations where one battery bank may be required to operate onboard equipment and provide engine-starting power.

Cold-Weather Performance

The integrated temperature-management system helps the battery operate across a wider range of temperatures. Internal heating allows the battery to accept a charge in cold conditions.

Charging and discharging limits vary according to battery temperature and operating conditions. Always follow the limits and installation instructions provided in the Volthium technical data sheet.

Easy Installation

When used with the SafeCharge current limiter, the Volthium PRO Series battery can often be installed without major changes to the existing alternator-charging system. This can reduce wiring requirements, installation time, and overall system complexity in compatible RV, marine, trucking, and commercial vehicle applications.

The built-in on/off switch allows discharging to be disabled while charging remains available. This is particularly useful during storage because it helps prevent connected equipment and parasitic loads from gradually discharging the battery.
