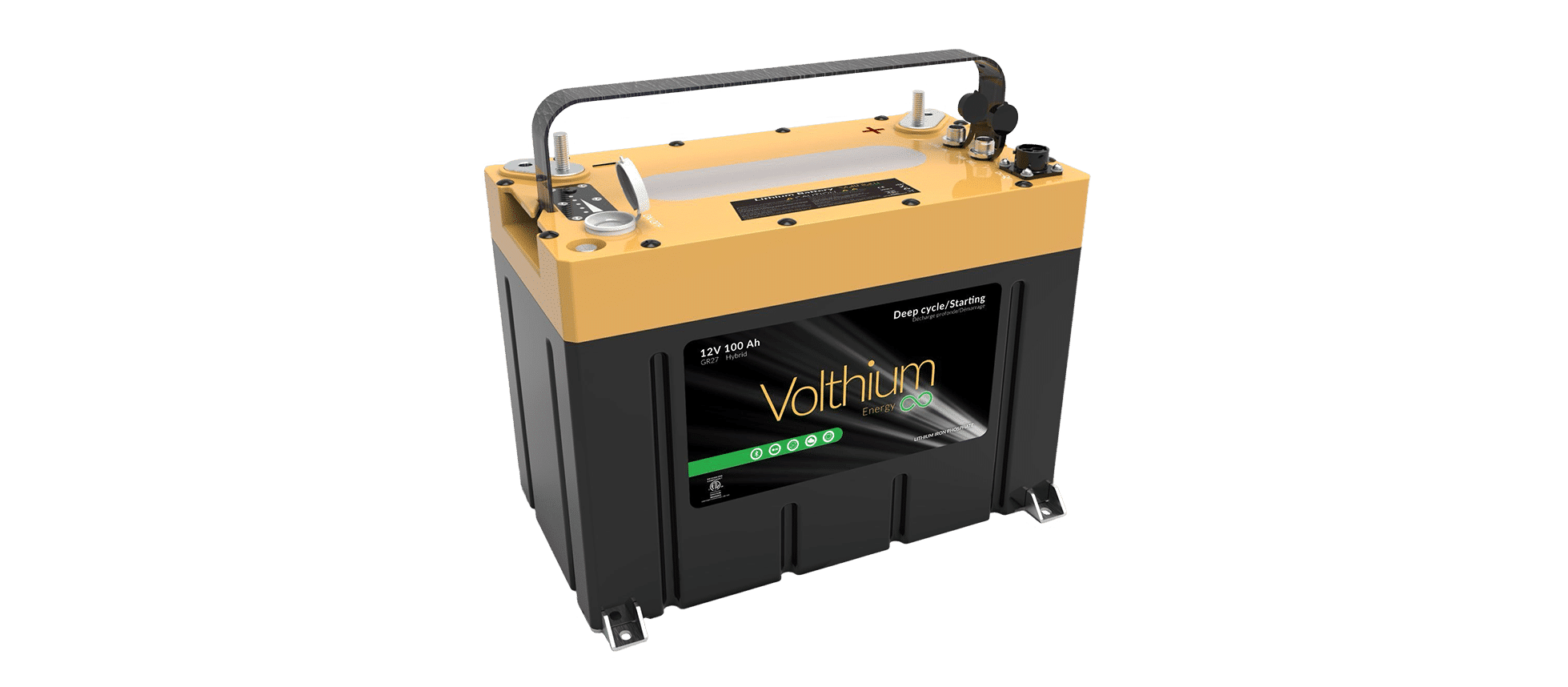

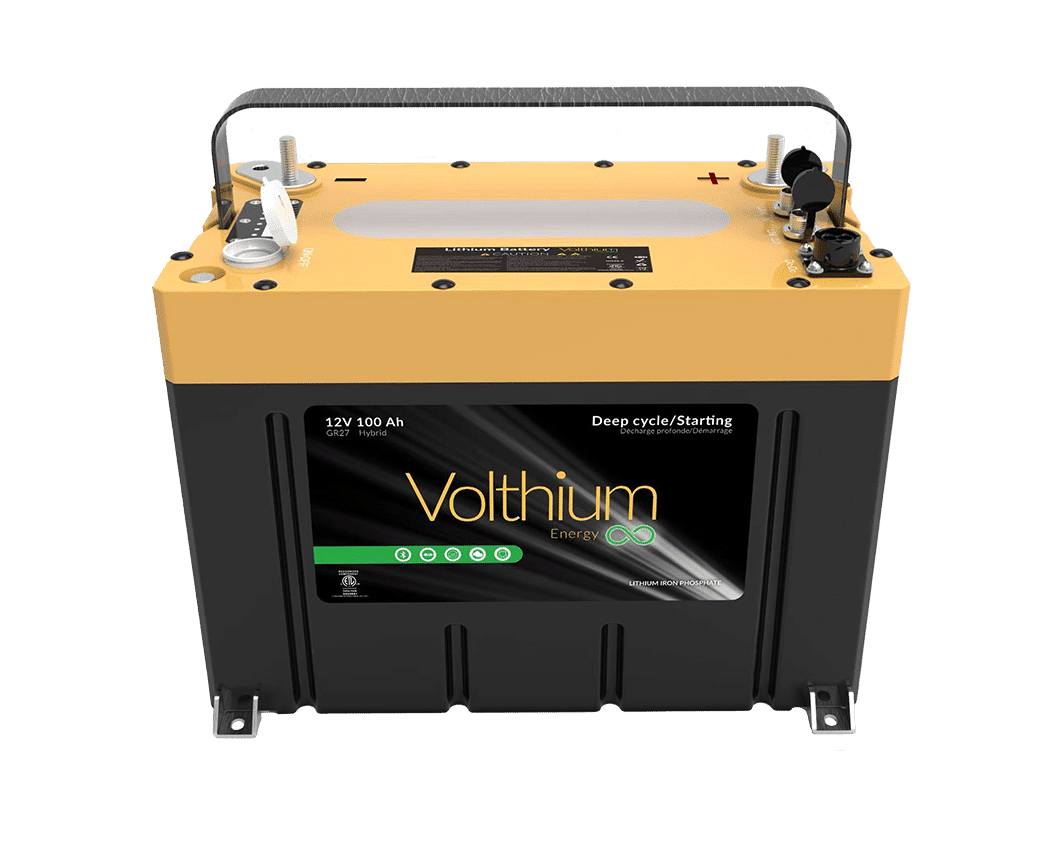

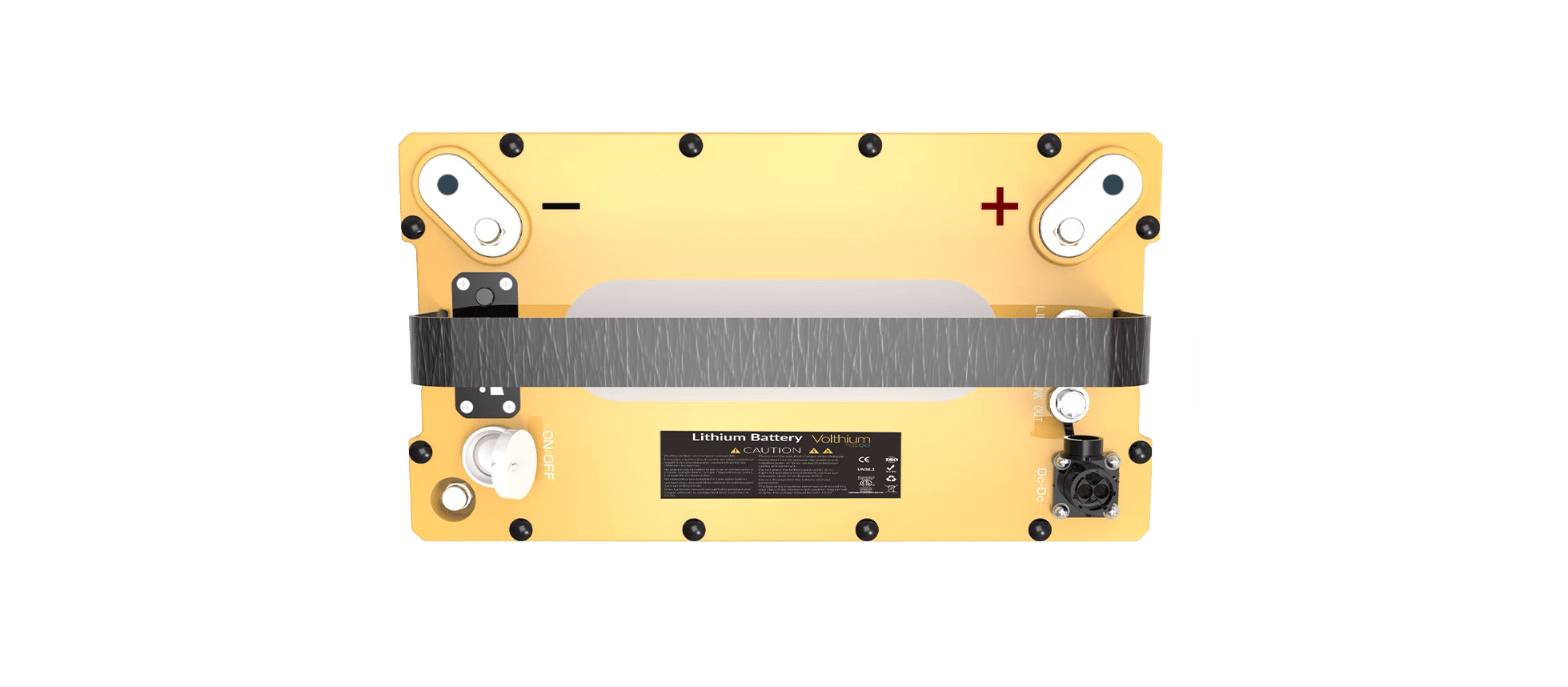

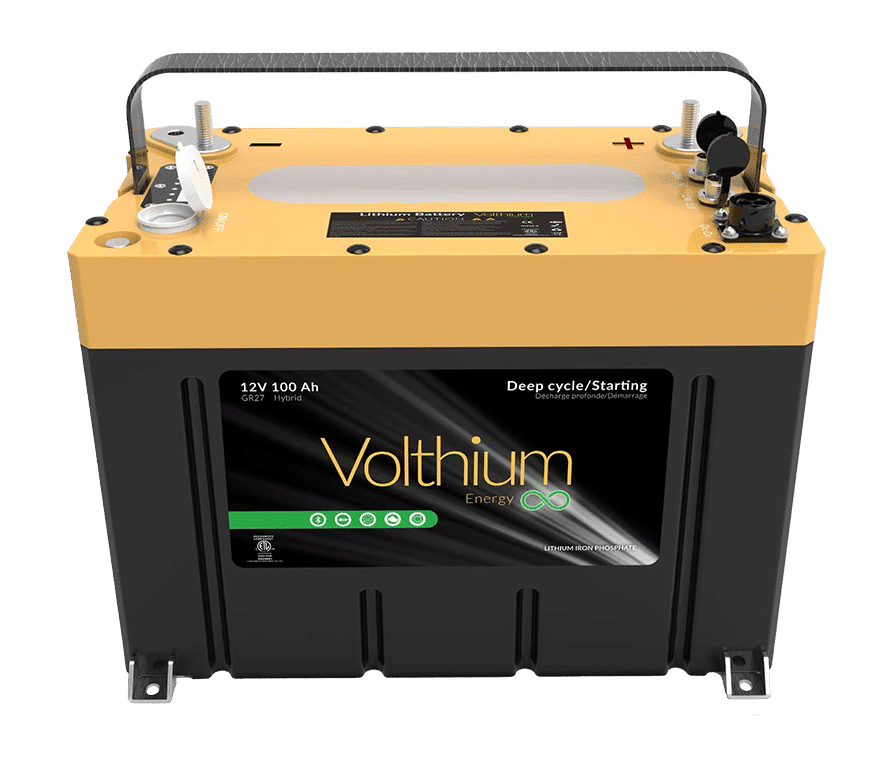

12V 100Ah Lithium Battery – Group 27

Description

Advanced lithium power with patented SafeCharge™ technology. The Volthium 12V 100Ah PRO Series 2 lithium battery is a Group 27 LiFePO4 battery designed for RV, marine, trucking, off-grid, and commercial applications requiring reliable deep cycle and engine starting performance. Featuring integrated SafeCharge™ compatibility, built-in Bluetooth monitoring, self-heating, cooling, and up to 1100 CCA, this battery delivers versatile performance with simplified installation when paired with the Volthium SafeCharge current limiter.

Compatible With / Replaces

The Volthium 12V 100Ah PRO Series 2 is a compatible replacement for Group 27 lithium batteries including:

• EWLI-12V80
• RB75
• Group 27 lithium batteries

Key Features

• 100Ah LiFePO4 lithium battery with 1280Wh energy capacity
• SafeCharge™ compatible for simplified alternator charging without a DC-DC converter in many applications
• 1100 Cold Cranking Amps (CCA) for engine starting applications
• Built-in Bluetooth monitoring with mobile app support
• Integrated self-heating and cooling system for improved temperature performance
• LED charge status indicator and built-in on/off switch
• CAN & RS485 communication ports with dual M12 communication connectors
• IP67 waterproof and dust resistant construction
• Lightweight design at only 27 lbs / 12.2 kg
• Compatible with RV, marine, trucking, off-grid solar, fishing, and commercial applications
• CSA UL1973 and UL9540A certified

What is SafeCharge™ Technology?

Volthium’s patented SafeCharge™ technology allows this lithium battery to work with existing lead-acid charging systems when paired with the Volthium SafeCharge current limiter. This helps protect the alternator while simplifying installation by eliminating the need for a DC-DC charger in many applications.

Using the Volthium mobile app, installers can configure charging thresholds and current limits directly from their smartphone. This allows the system to regulate charging current automatically, helping protect both the alternator and battery while maintaining reliable charging performance.

SafeCharge™ technology also helps retain factory boost/combine functions commonly found in RV and marine electrical systems and supports installations requiring both starting and deep cycle capability from a single battery bank.

Easy Installation

Designed for easier installation, the Volthium PRO Series 2 battery can often be installed without major wiring modifications when used with the SafeCharge current limiter. This helps reduce installation complexity and installation time for RV, marine, and commercial vehicle applications.

Specifications

• Voltage: 12.8V
• Capacity: 100Ah
• Energy: 1280Wh
• Chemistry: LiFePO4 (Lithium Iron Phosphate)
• BCI Group Size: Group 27
• Cold Cranking Amps: 1100 CCA
• Bluetooth: Yes
• Communication Ports: CAN & RS485
• Ingress Protection: IP67
• Terminal Type: M8
• Length: 12.1″ / 308 mm
• Width: 6.6″ / 168 mm
• Height: 9.1″ / 229 mm
• Weight: 27 lbs / 12.2 kg

Data Sheet: 12V 100Ah Pro2 specifications (PDF)
