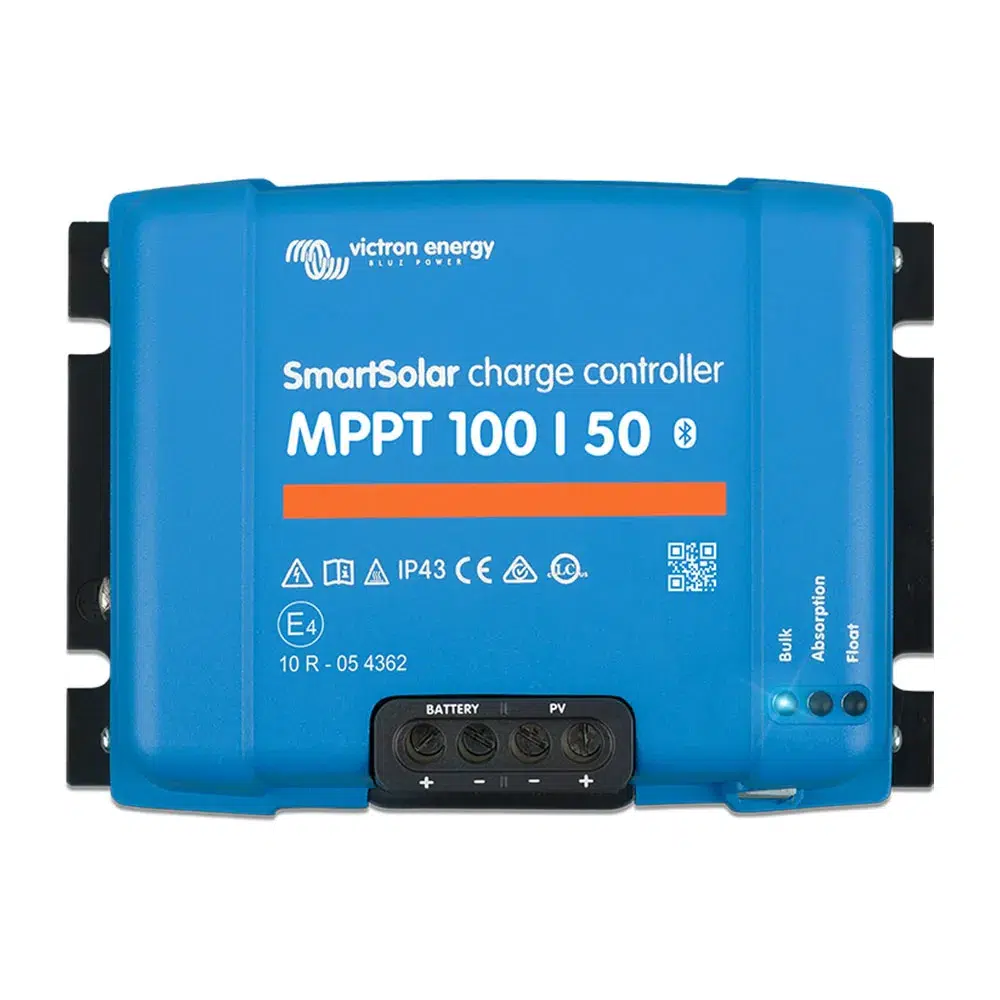

Victron 50 Amp MPPT Solar Charge Controller

Description

The Victron SmartSolar MPPT 100/50 solar charge controller is designed for higher-capacity 12V and 24V solar systems requiring advanced MPPT charging performance and intelligent system monitoring. Built-in Bluetooth connectivity allows convenient setup and real-time monitoring through the VictronConnect app.

Ideal for RVs, cabins, off-grid systems, marine applications, and lithium battery systems, the SmartSolar 100/50 allows easy setup and real-time monitoring through the VictronConnect app.

Key Features

• 50 amp MPPT solar charge controller
• Compatible with 12V and 24V battery systems
• Ultra-fast MPPT technology maximizes solar energy harvest
• Built-in Bluetooth for wireless monitoring and setup using the VictronConnect app
• 100V maximum PV input voltage
• Advanced partial shading optimization improves charging performance
• Supports AGM, flooded, Gel, and lithium batteries
• Programmable charging algorithms
• High efficiency exceeding 98%
• Comprehensive electronic protection features

Common Applications

• RV and van solar systems
• Cabins and off-grid installations
• Marine solar systems
• Lithium battery charging systems
• Backup power systems
• Remote power applications

Specifications

• Charging Type: MPPT
• Rated Charging Current: 50A
• System Voltage: 12V / 24V Auto
• Maximum PV Open Circuit Voltage: 100V
• Maximum PV Short Circuit Current: 60A
• Nominal PV Power (12V): 700W
• Nominal PV Power (24V): 1400W
• Maximum Efficiency: 98%
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Data Sheet: Victron VE-MPPT-100 Datasheet (pdf)

Dimensions

• Length: 186 mm / 7.3″
• Width: 130 mm / 5.1″
• Height: 70 mm / 2.75″
• Weight 1.3 kg / 2.9 lbs

Protection Features

• PV reverse polarity protection
• Output short circuit protection
• Over-temperature protection
