Description

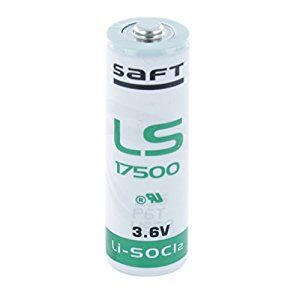

The SAFT LS17500 is a non-rechargeable 3.6V A size lithium-thionyl chloride (Li-SOCl₂) battery with low self-discharge. It’s engineered for reliable long-term performance in demanding industrial and electronic applications.
Cross-reference and Compatibility
The LS17500 may be suitable as a replacement for the following 3.6V Li-SOCl₂ A battery model:
- ER17500
Important: Verify the battery dimensions, terminal configuration, continuous-current requirements, and pulse-current requirements before substituting batteries. Equivalent size and voltage do not guarantee compatibility with every device.
Key Features
- Low self-discharge helps preserve capacity during storage
- Stable voltage through most of the battery’s operating life
- Operating temperature range of −60 °C to +85 °C
- Maximum recommended continuous current: 100 mA
- Supports brief current pulses up to 250 mA under the conditions specified in the data sheet
- Stainless steel case with a hermetic glass-to-metal seal
Typical Applications
- Utility and smart meters
- Sensors and wireless transmitters
- Security and alarm systems
- Memory and real-time clock backup
- Tracking systems and beacons
- Medical devices
- Industrial controls and instrumentation
- Professional electronic equipment
Specifications
- Manufacturer: SAFT
- Model: LS17500
- Chemistry: Lithium-Thionyl Chloride (Li-SOCl₂)
- Cell type: Primary/non-rechargeable
- Nominal voltage: 3.6V
- Nominal capacity: 3.6 Ah (3,600 mAh)
- Size: A
- Maximum diameter: 17.16 mm
- Maximum height: 50.77 mm
- Typical weight: 22 g
- Terminals:Raised positive button and flat negative contact
- Data Sheet: LS 17500 Product Datasheet (PDF)
Important: This is a non-rechargeable lithium battery. Do not attempt to recharge.
