Description

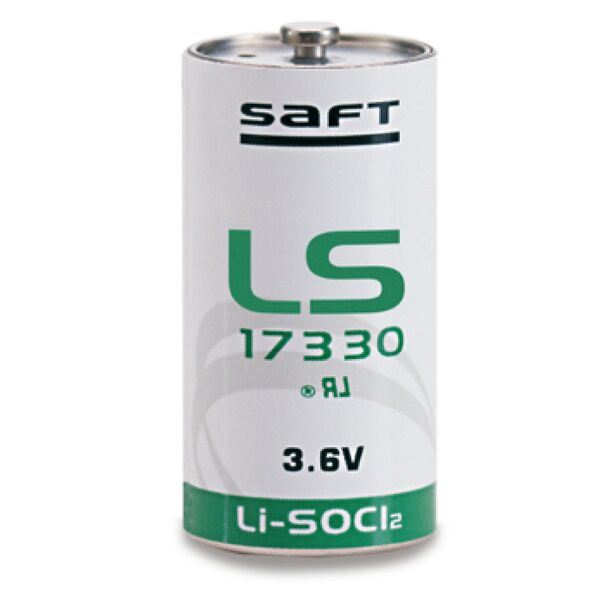

The SAFT LS17330 is a non-rechargeable 3.6V 2/3 A size lithium-thionyl chloride (Li-SOCl₂) battery with low self-discharge. It’s engineered for reliable long-term performance in demanding industrial and electronic applications.
Cross-reference and Compatibility
- ER17335
Important: Verify the battery dimensions, terminal configuration, continuous-current requirements, and pulse-current requirements before substituting batteries. Equivalent size and voltage do not guarantee compatibility with every device.
Key Features
- Low self-discharge helps preserve capacity during storage
- Stable voltage through most of the battery’s operating life
- Operating temperature range of −60 °C to +85 °C
- Maximum recommended continuous current: 25 mA
- Supports brief current pulses up to 120 mA under the conditions specified in the data sheet
- Stainless steel case with a hermetic glass-to-metal seal
Applications
- Utility and smart meters
- Sensors and wireless transmitters
- Security and alarm systems
- Memory and real-time clock backup
- Industrial controls and instrumentation
- Tracking and monitoring equipment
Specifications
- Manufacturer: SAFT
- Model: LS17330
- Chemistry: Lithium-thionyl chloride (Li-SOCl₂)
- Cell type: Primary/non-rechargeable
- Nominal voltage: 3.6V
- Nominal capacity: 2.1 Ah (2,100 mAh)
- Size: 2/3 A
- Maximum diameter: 16.5 mm
- Maximum height: 33.4 mm
- Typical Weight: 14.4 grams
- Terminals: Raised positive button and flat negative contact
- Data Sheet: LS17330 Product Datasheet (PDF)
Important: This is a non-rechargeable lithium battery. Do not attempt to recharge.
