Epever 10 Amp PWM Solar Charge Controller
Epever
Epever 10 amp PWM solar charge controller for 12V and 24V solar systems. Compatible with flooded, AGM, and Gel batteries for RV, cabin, off-grid, and battery charging applications.
$55.00 CAD
Description

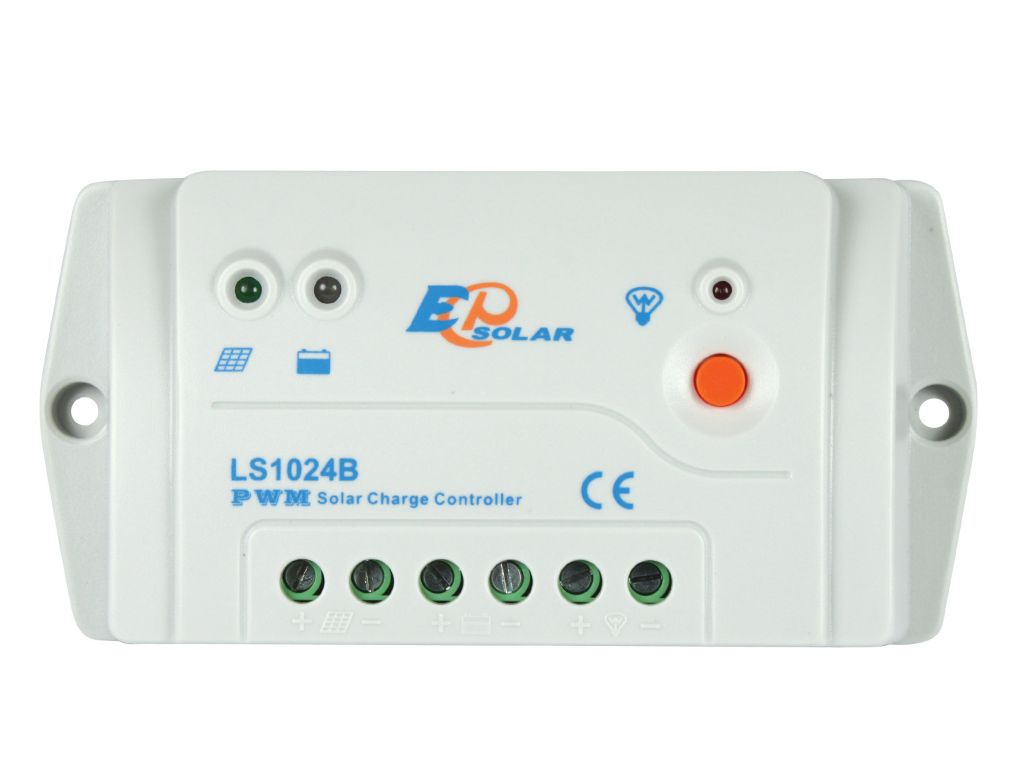

Epever 10 Amp PWM Solar Charge Controller
The Epever 10 amp solar charge controller is designed for reliable battery charging in 12V and 24V solar power systems. Featuring high-efficiency PWM charging technology and built-in electronic protection, this controller is ideal for RVs, cabins, off-grid systems, battery charging applications, and small solar installations.
Compatible with flooded, AGM, and Gel batteries, the controller automatically manages charging to help protect and extend battery life.
Key Features
- 10 amp PWM solar charge controller
- Compatible with 12V and 24V solar systems
- Supports flooded, AGM, and Gel batteries
- High-efficiency PWM charging with temperature compensation
- Easy-to-read LED indicators display charging, battery, and load status
- Built-in electronic protection for safe operation
- RS485 communication interface
- Wide operating temperature range for outdoor environments
Common Applications
- RV and trailer solar systems
- Cabins and off-grid systems
- Battery charging applications
- Small solar power systems
- Remote power installations
Specifications
- Charging Type: PWM
- Rated Charging Current: 10A
- System Voltage: 12V / 24V Auto
- Operating Temperature: -35°C to 55°C (-31°F to 131°F)
Dimensions
- Length: 138.6 mm / 5.46″
- Width: 69.3 mm / 2.73″
- Height: 37 mm / 1.46″
- Weight: 0.13 kg / 0.3 lbs
