A6BAT /B9670MC 3.6V Mitsubishi PLC Battery

Description

The A6BAT is a 3.6V lithium PLC battery designed for use in select Mitsubishi programmable logic controllers, servo systems, industrial robots, and industrial computers. It features a black wired connector for direct installation and provides dependable backup power for stored programs, system settings, memory, and position data.

Made with an ER17330 lithium-thionyl chloride (Li-SOCl₂) cell, this non-rechargeable battery provides 1,700mAh of capacity and is also commonly identified as the Mitsubishi MR-BAT.

Compatible With / Replaces

The A6BAT replaces Mitsubishi and Fedco PLC battery assemblies and part numbers including:

• A6BAT
• B9670MC
• MR-BAT
• MX100BT01
• FED9670MC
• COMP-153

Key Features

• Designed for Mitsubishi Equipment – Provides backup power for programs, settings, memory, and position data.

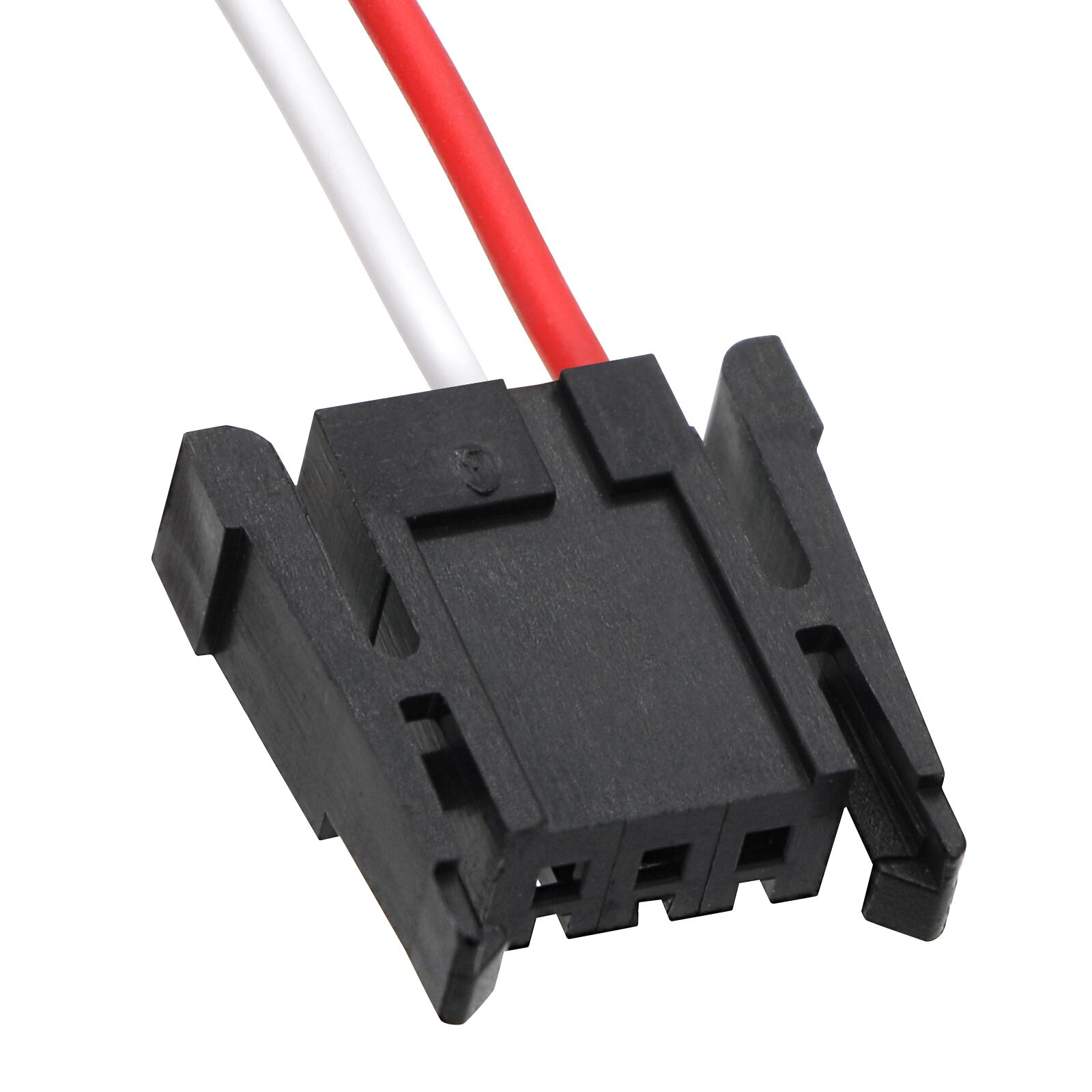

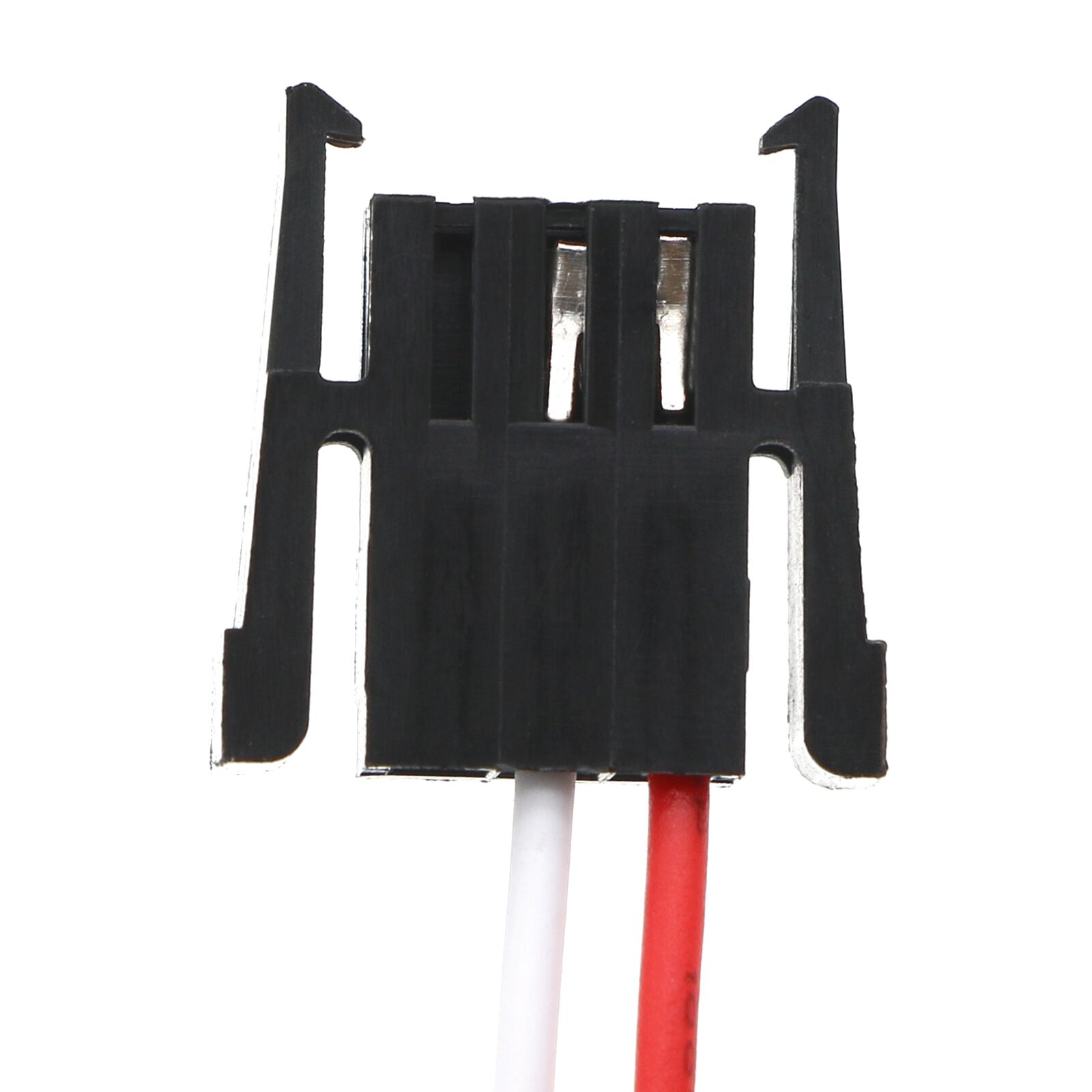

• Black Wired Connector – Supplied ready for installation in compatible equipment.
• ER17330 Lithium Cell – Uses non-rechargeable lithium-thionyl chloride (Li-SOCl₂) chemistry.
• 1,700mAh Capacity – Provides dependable power for industrial memory-backup applications.
• Low Self-Discharge – Suitable for long-term use in PLCs and other industrial equipment.

Specifications

• Voltage: 3.6V
• Capacity: 1,700mAh
• Energy: 6.12Wh
• Chemistry: Lithium thionyl chloride (Li-SOCl₂)
• Cell Type: ER17330
• Cell Size: 2/3 A
• Cell Length: Approximately 33.5 mm (1.32″)
• Cell Diameter: Approximately 17 mm (0.67″)
• Connector Colour: Black
• Rechargeable: No

Important: Confirm the battery part number, connector type, connector colour, and polarity before ordering.
