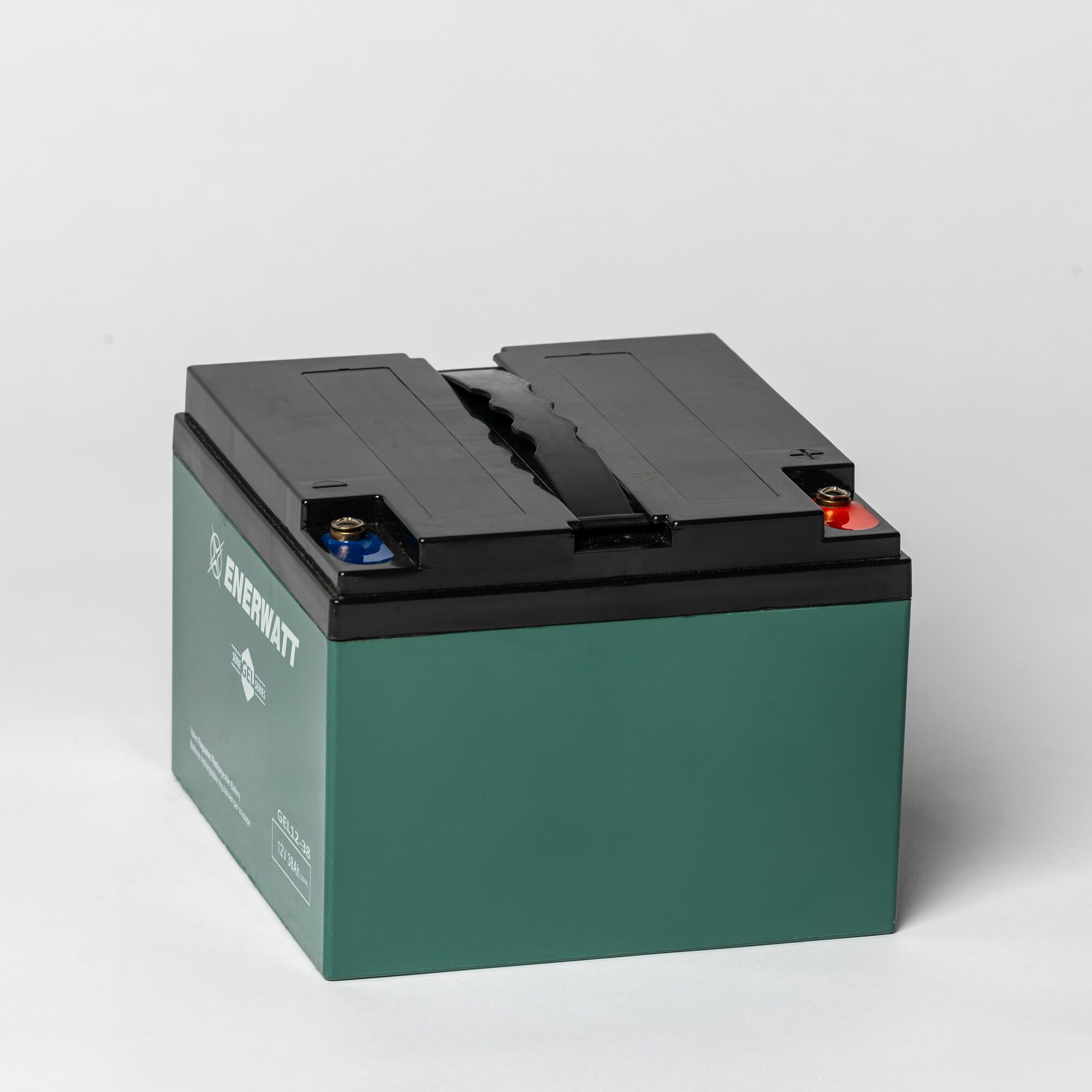

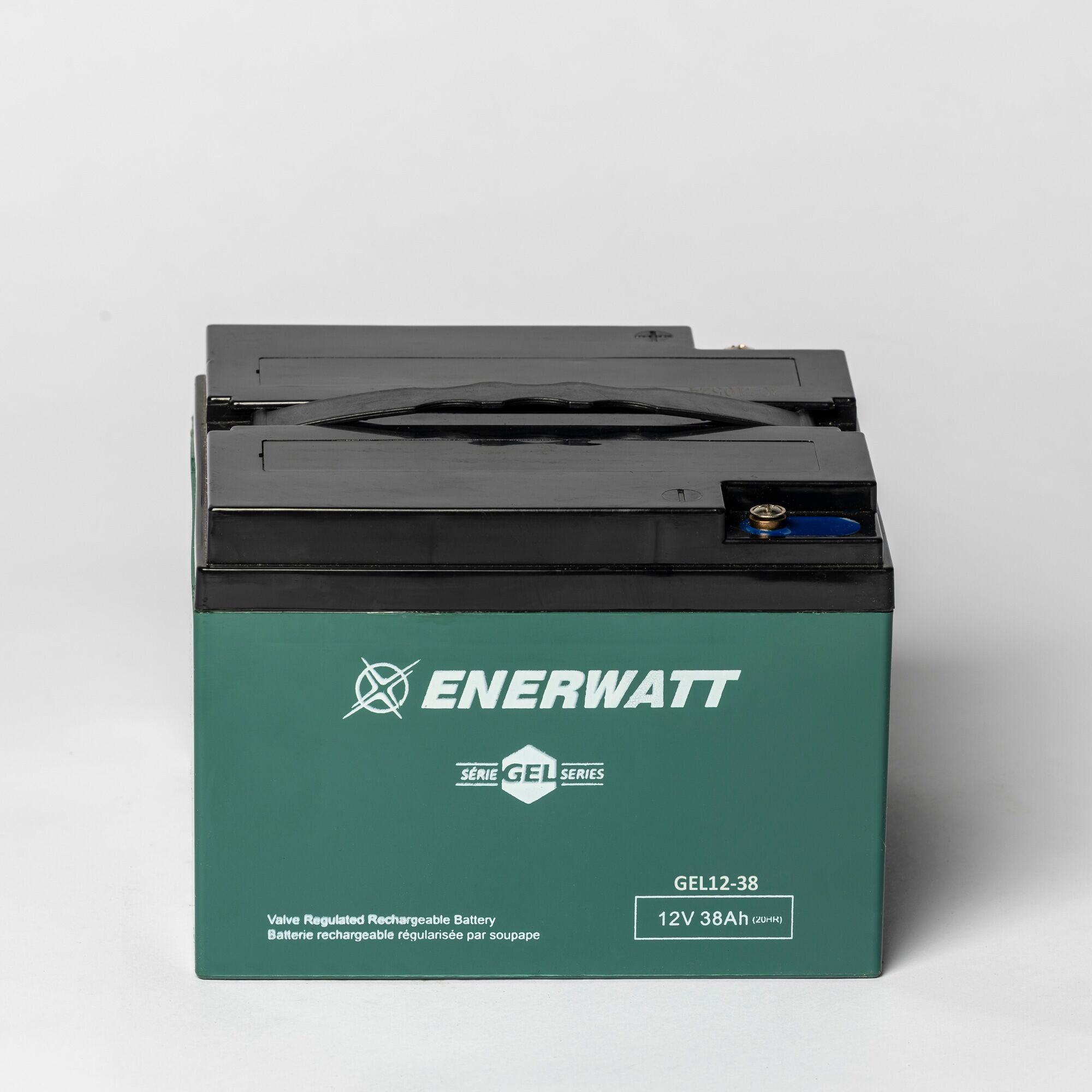

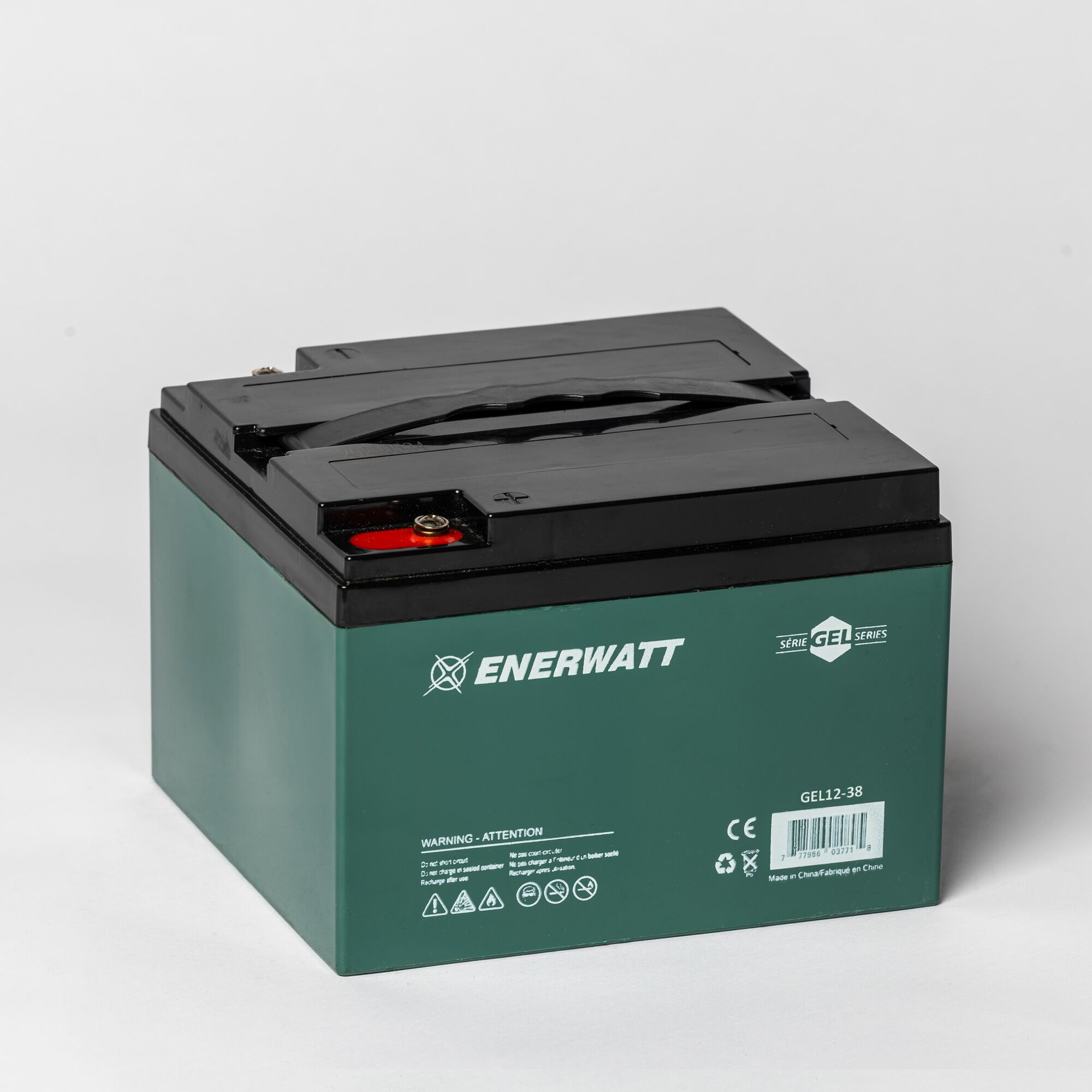

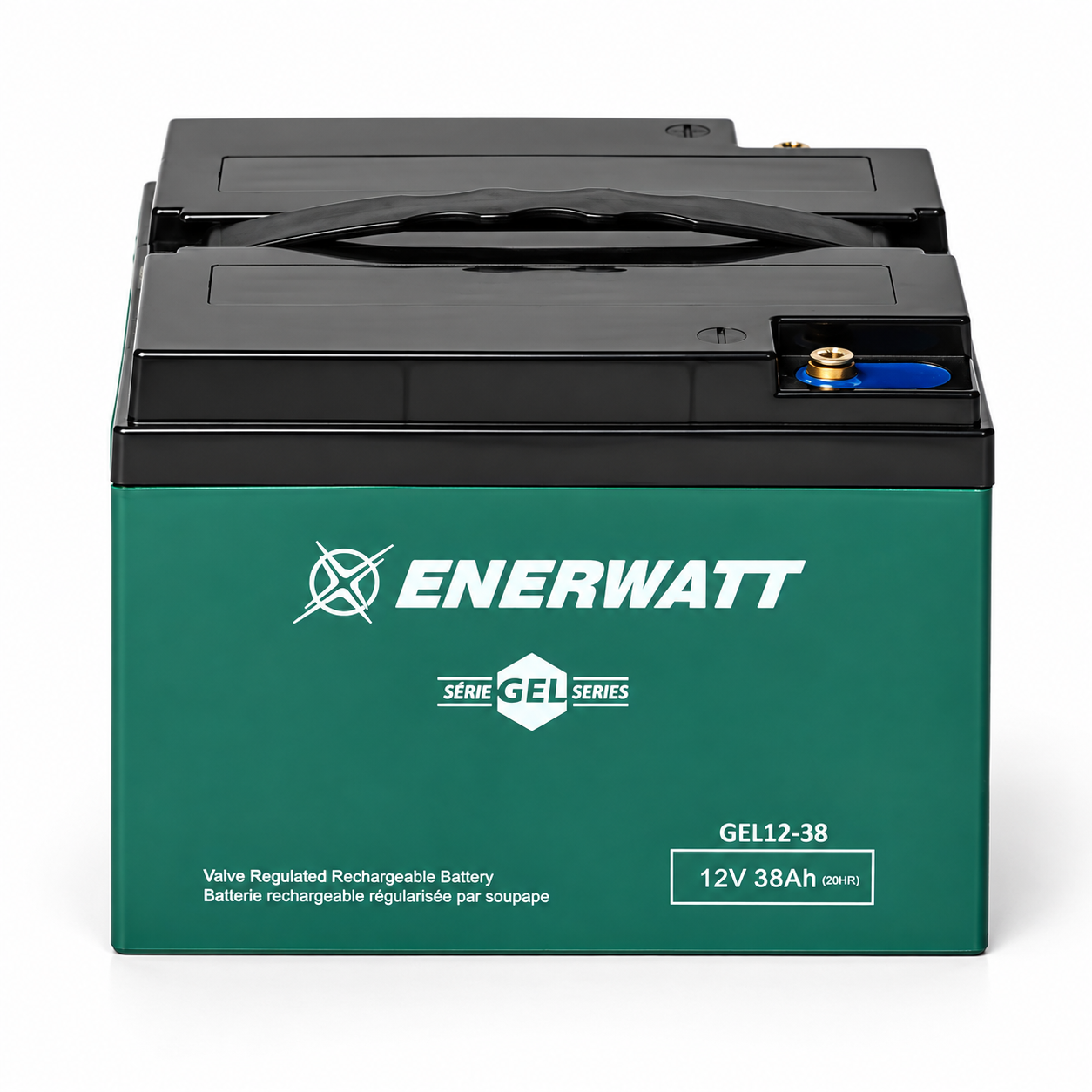

12V 38Ah Gel Battery – 6-DZM-30B

Description

The 6-DZM-30B / GEL12-38 12V 38Ah Gel Battery is a high-cycle deep cycle battery designed for electric vehicles and other applications requiring frequent charging and discharging. Advanced gel electrolyte technology provides excellent cycle performance, vibration resistance and dependable power in a completely sealed, maintenance-free battery.

Ideal for mobility scooters, power wheelchairs, electric golf caddies and e-bikes, this battery offers 38Ah of capacity in approximately the same footprint as many general-purpose 12V 26Ah AGM batteries. The additional capacity can provide significantly longer run time when the battery dimensions and equipment requirements are compatible.

Key Features

• 12V 38Ah Deep Cycle Capacity: Provides high capacity for applications requiring extended run time and repeated deep cycling.
• Designed for Electric Vehicles: Built specifically for cyclic applications rather than general-purpose standby use.
• Long Cycle Life: Designed to provide up to 1,200 cycles at 50% depth of discharge under specified operating conditions.
• Gel Technology: Gelled electrolyte provides excellent resistance to vibration and deep discharge while eliminating the need to add water.
• Sealed & Maintenance-Free: Spill-proof construction makes the battery suitable for applications where a conventional flooded battery would be impractical.
• High Capacity in a Compact Size: Offers approximately 40% more rated amp-hour capacity than a 12V 26Ah battery while maintaining a similar footprint.

Applications

• Mobility scooters
• Power wheelchairs
• Electric golf caddies
• E-bikes and electric mobility equipment

Specifications

• Voltage: 12V
• Capacity: 38Ah
• Battery Type: Gel Deep Cycle
• Length: 6.5″ / 165 mm
• Width: 6.9″ / 174 mm
• Height: 5″ / 126 mm
• Weight: 22 lbs / 9.6 kg

More Capacity in a Compact Footprint

The GEL12-38 is approximately the same physical size as many 12V 26Ah general-purpose AGM batteries, but provides 38Ah of rated capacity. That’s approximately 40% more amp-hour capacity, which can provide significantly longer run time between charges.

Always check the battery compartment dimensions, terminal configuration and equipment requirements before replacing a 26Ah battery with the GEL12-38.

Golf Caddie Compatibility

The GEL12-38 can be used as a replacement battery for select electric golf caddies, including:

• Paradigm The Advantage
• Bag Boy Cruiser
• MGI Coaster Hunter Quad
• MGI Coaster Hunter Brake
• Spitzer E1 Electric
