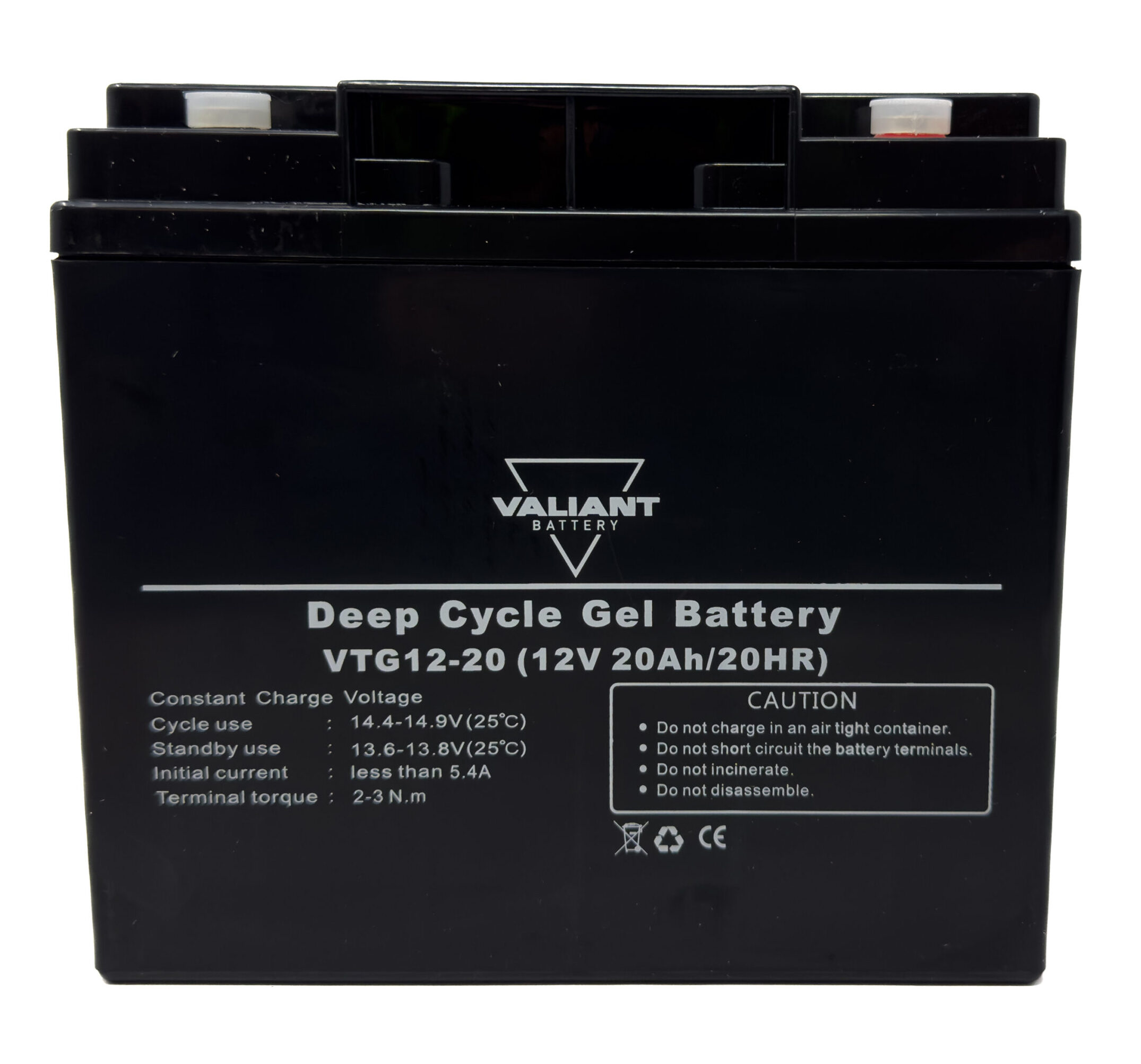

12V 20Ah Gel Deep Cycle Battery

Description

12V 20Ah gel battery designed for mobility equipment, scooters, e-bikes, and other deep cycle applications. This fully sealed gel battery delivers reliable performance, long cycle life, and excellent resistance to vibration and extreme temperatures.

Compatible With / Replaces

The VTG12-20 is a compatible replacement for:

• 6-DZM-20

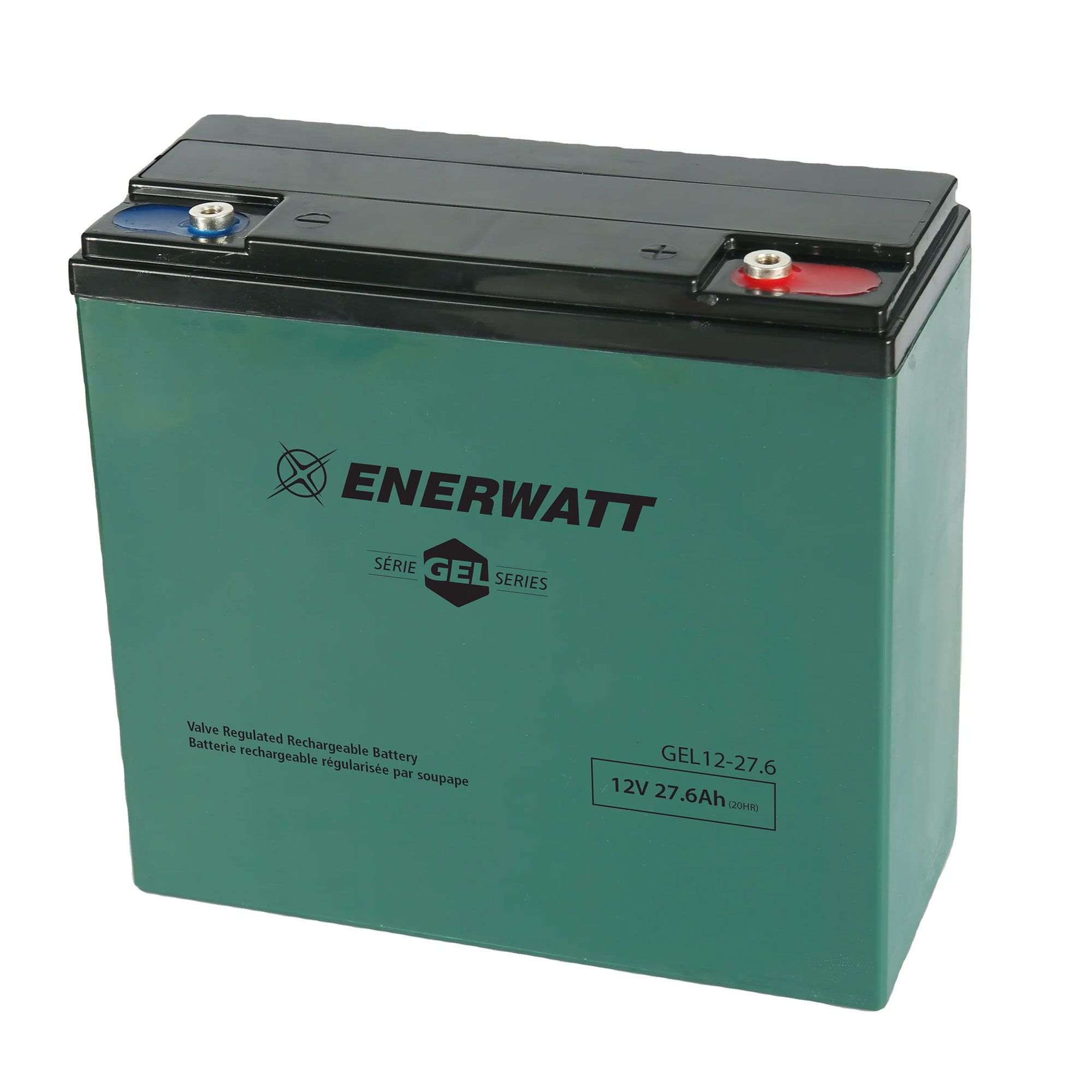

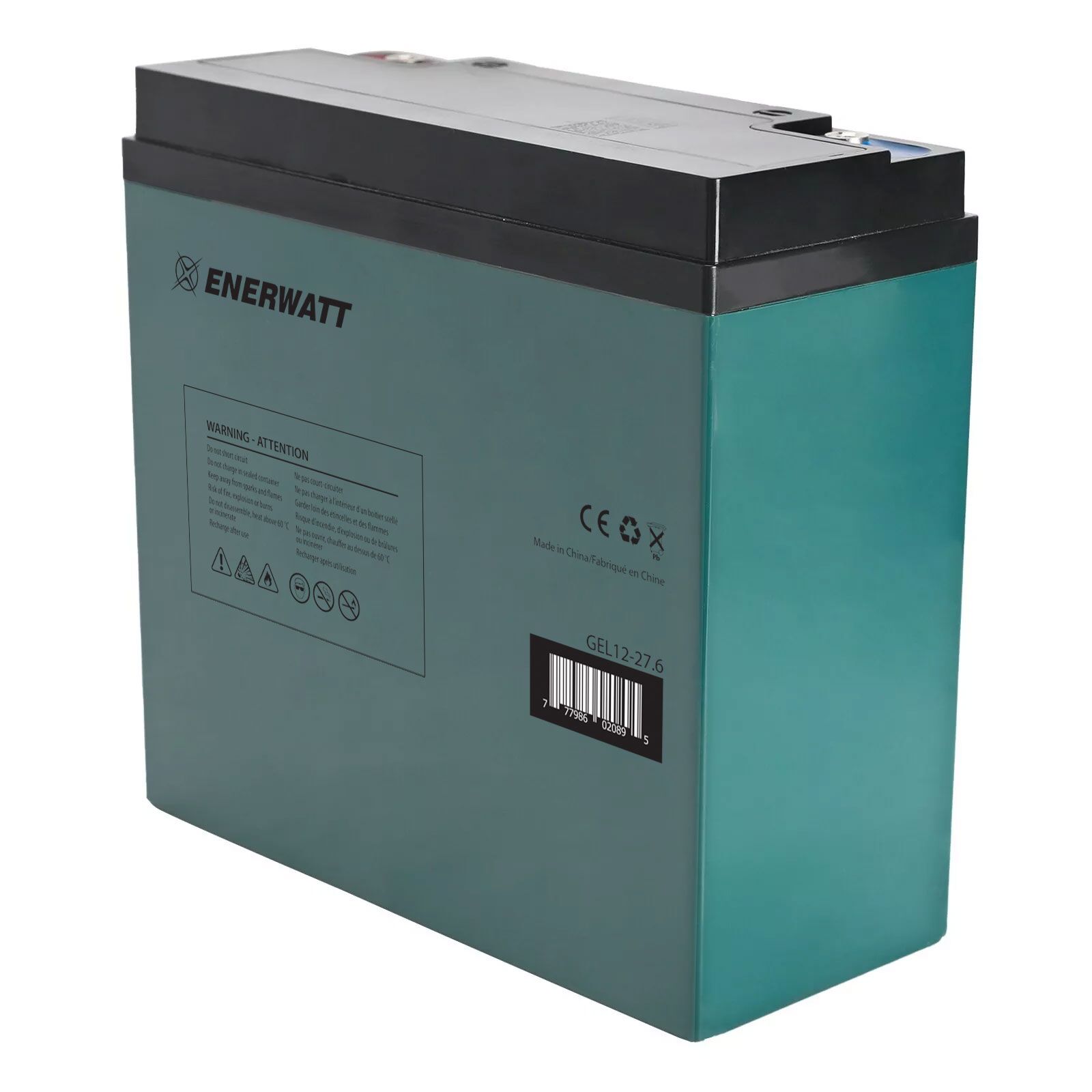

• Gel12-27.6
• ML22-12 Gel
• And more

Key Features

• Sealed Gel Technology – maintenance-free and non-spillable with no liquid acid.
• Long Cycle Life – up to 1,600 cycles at 50% depth of discharge.
• Extreme Temperature Performance – operates from -40°F (-40°C) to 140°F (60°C).
• Durable Construction – vibration-resistant and flame-resistant case design.
• Low Self-Discharge – helps maintain charge during storage and standby use.
• Long Service Life – up to 8 years in standby applications.

Common Applications

• Mobility equipment
• E-bikes
• Scooters
• Electric ride-on equipment
• Backup power systems

Specifications

• Voltage: 12V
• Capacity: 20Ah
• Chemistry: Gel
• Length: 7.13″ / 187 mm
• Width: 3.03″ / 77 mm
• Height: 6.58″ / 167 mm
• Weight: 13.2 lbs / 6 kg
• Terminal Type: M6 Insert
• Warranty: 12 Months
• Data Sheet: Download PDF

Need help confirming compatibility? Contact us and we’ll help you find the right replacement battery for your equipment.

FAQ

Can this battery be used in mobility equipment, scooters, or e-bikes?

Yes. The VTG12-20 is commonly used in mobility equipment, scooters, e-bikes, and other deep cycle applications. Always confirm the voltage, dimensions, and terminal type before ordering.

Should all batteries be replaced at the same time in a multi-battery setup?

Yes. If your equipment uses multiple batteries, replacing the entire set at the same time is strongly recommended. Mixing old and new batteries can reduce performance and shorten battery life.

How long will this battery last?

The VTG12-20 offers up to 1,600 cycles at 50% depth of discharge and provides a long service life in demanding deep cycle applications.

Can this battery be used outdoors?

Yes. The VTG12-20 is designed to handle vibration and a wide range of operating temperatures, making it suitable for many outdoor applications.

How do I confirm compatibility?

Check the voltage, amp hour rating, dimensions, and terminal type against your original battery. If you’re unsure, contact us and we’ll help confirm the correct replacement.
